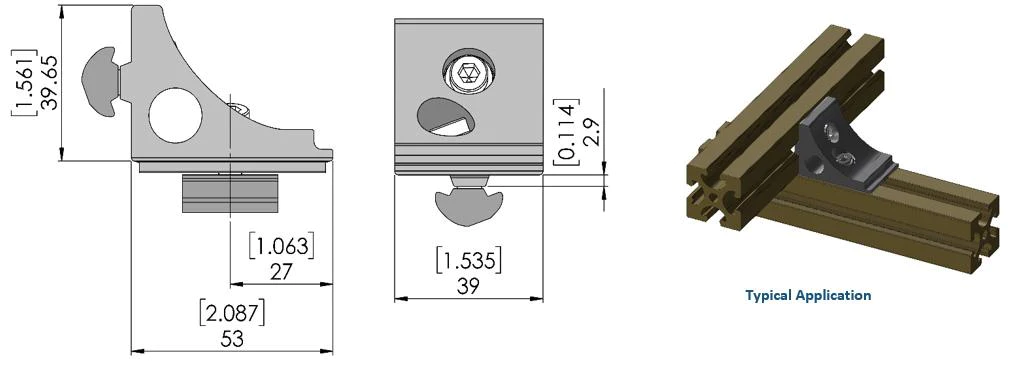

SD Perpendicular
Description:

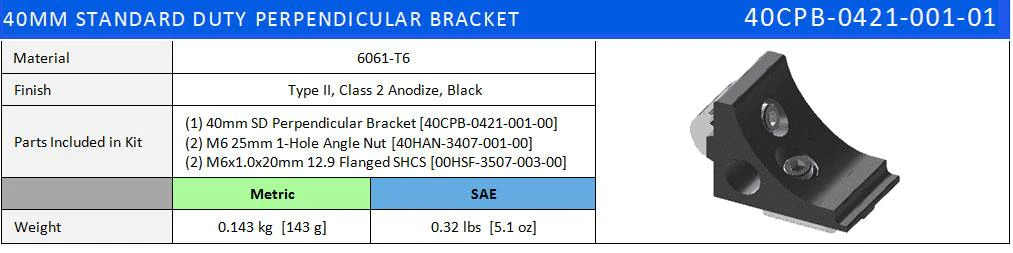

40CPB-0421-001-01
×
Load Ratings:
Direct Loading |
|
|---|---|
| Vertical Working Load (N) | Direction 1: 3,883 / Direction 2: 2,201 |
| Vertical Working Load (lbf) | Direction 1: 874 / Direction 2: 495 |
| Horizontal Working Load (N) | Direction 1: 2,136 / Direction 2: - |
| Horizontal Working Load (lbf) | Direction 1: 481 / Direction 2: - |
| Vert./Horiz. Alternate Working Load (N) | Direction 1: - / Direction 2: - |
| Vert./Horiz. Alternate Working Load (lbf) | Direction 1: - / Direction 2: - |
| Tension Working Load (N) | Direction 1: 2,589 / Direction 2: - |
| Tension Working Load (lbf) | Direction 1: 583 / Direction 2: 0 |
Torsion |
|
|---|---|
| Working Load (N·m) | Direction 1: 272 / Direction 2: 248 |
| Working Load (in·lb) | Direction 1: 2,406 / Direction 2: 2,196 |
| Working Load (N·m) | Direction 1: 627 / Direction 2: - |
| Working Load (in·lb) | Direction 1: 5,549/ Direction 2: - |
Moment |
|
|---|---|
| Working Load (N·m) | Direction 1: 297 / Direction 2: 264 |
| Working Load (in·lb) | Direction 1: 2,628 / Direction 2: 2,336 |
| Working Load (N·m) | Direction 1: 314 / Direction 2: |
| Working Load (in·lb) | Direction 1: 2,774 / Direction 2: - |
| Working Load (N·m) | Direction 1: 380 / Direction 2: 1,325 |
| Working Load (in·lb) | Direction 1: 3,364 / Direction 2: 11,729 |
| Working Load (N·m) | Direction 1: 281 / Direction 2: 1,423 |
| Working Load (in·lb) | Direction 1: 2,482 / Direction 2: 12,593 |
