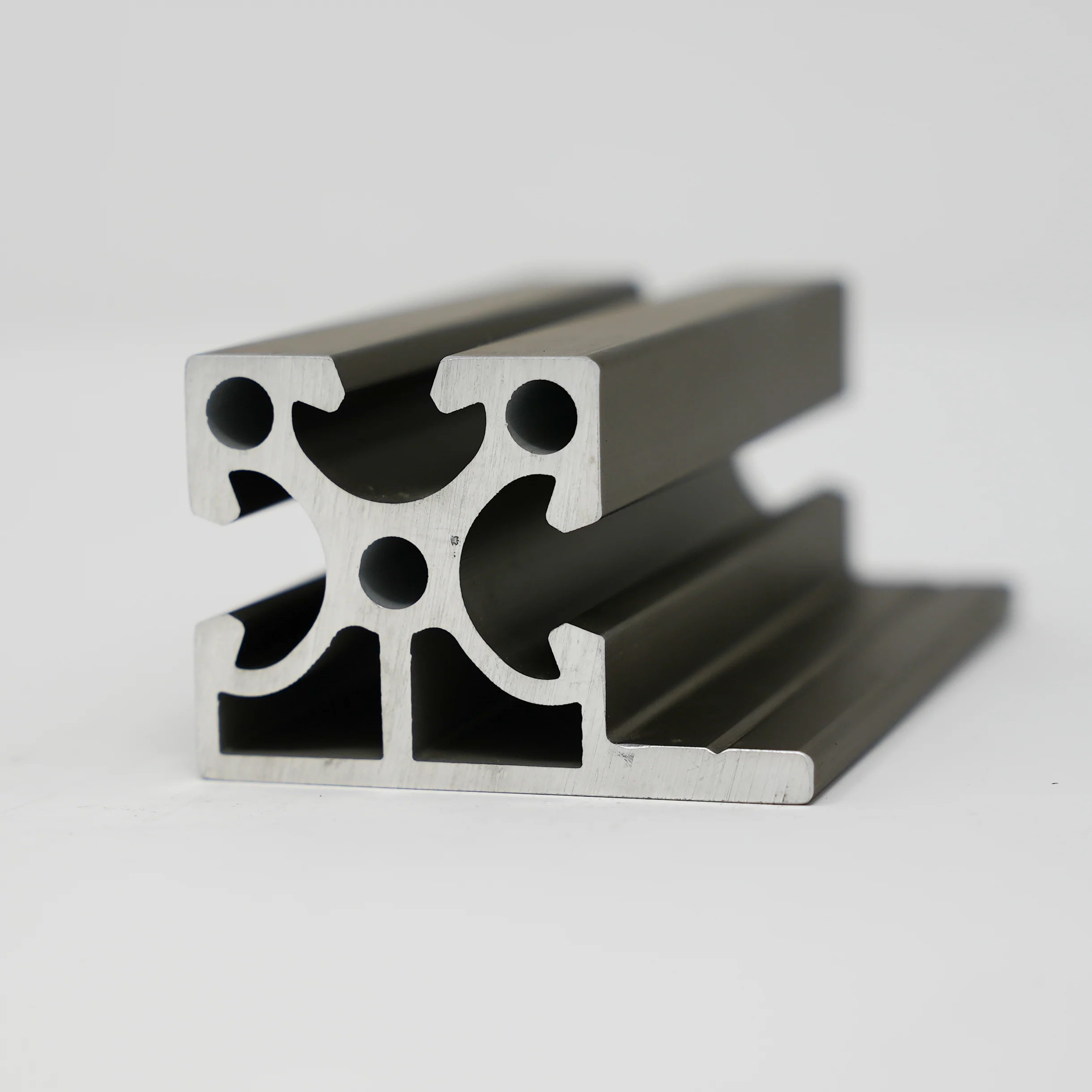

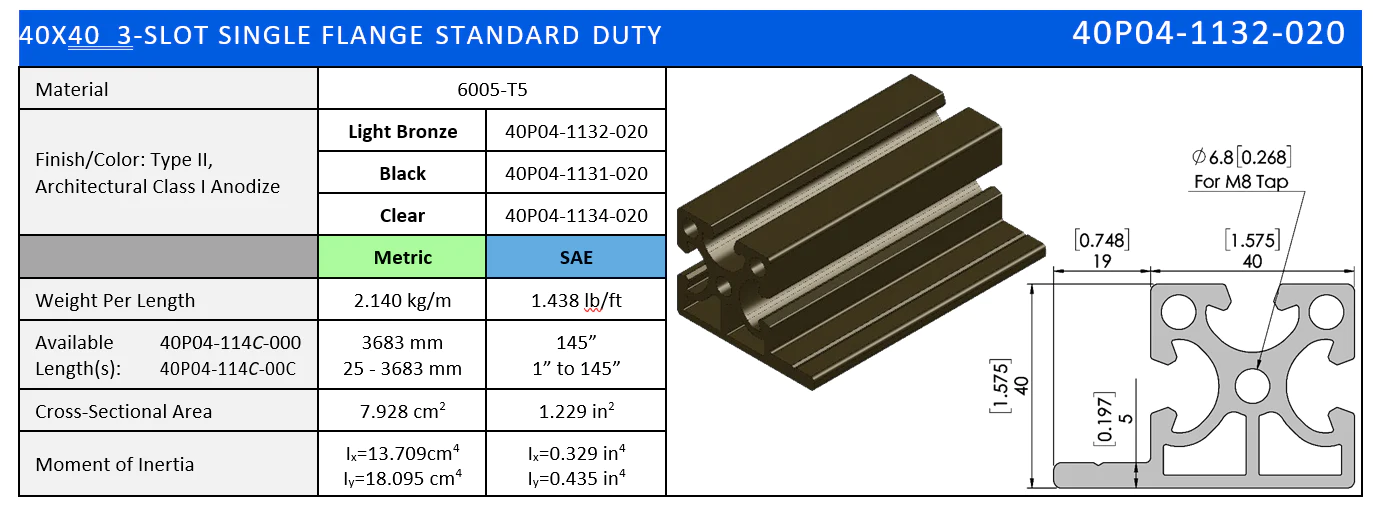

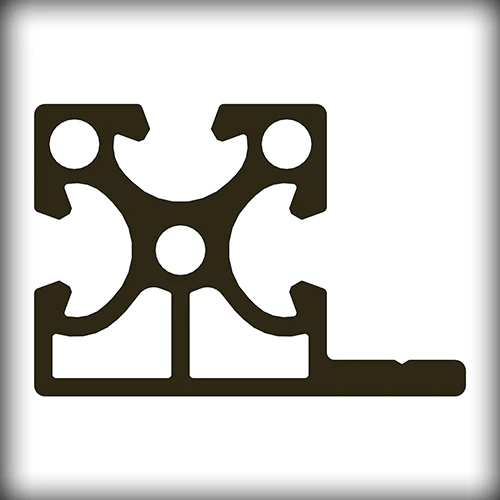

40x40 3-Slot Single Flange SD Profile
Product #:
40P04-1131-02C: BLACK
40P04-1132-02C: LIGHT BRONZE
40P04-1134-02C: CLEAR
Description: Contact Sales for special sizing.
| Material | 6005-T5 | |
| Finish/Color: Type II, Architectural Class I Anodized | Light Bronze | 40P04-1132-020 |
| Black | 40P04-1131-020 | |
| Clear | 40P04-1134-020 | |
| METRIC | SAE | |
| Weight Per Length | 2.140 kg/m |
1.438 lb/ft |
|
Available Length(s)
40P04-113X-020 40P04-113X-02C |
3683 mm 25-3683 mm |
145” 1” to 145” |
| Cross-Sectional Area | 7.928 cm² | 1.229 in² |
| Moment Of Inertia |
Ix=11.045 cm4 Iy=20.759 cm4 |
Ix=0.265 in4 Iy=0.499 in4 |
×
