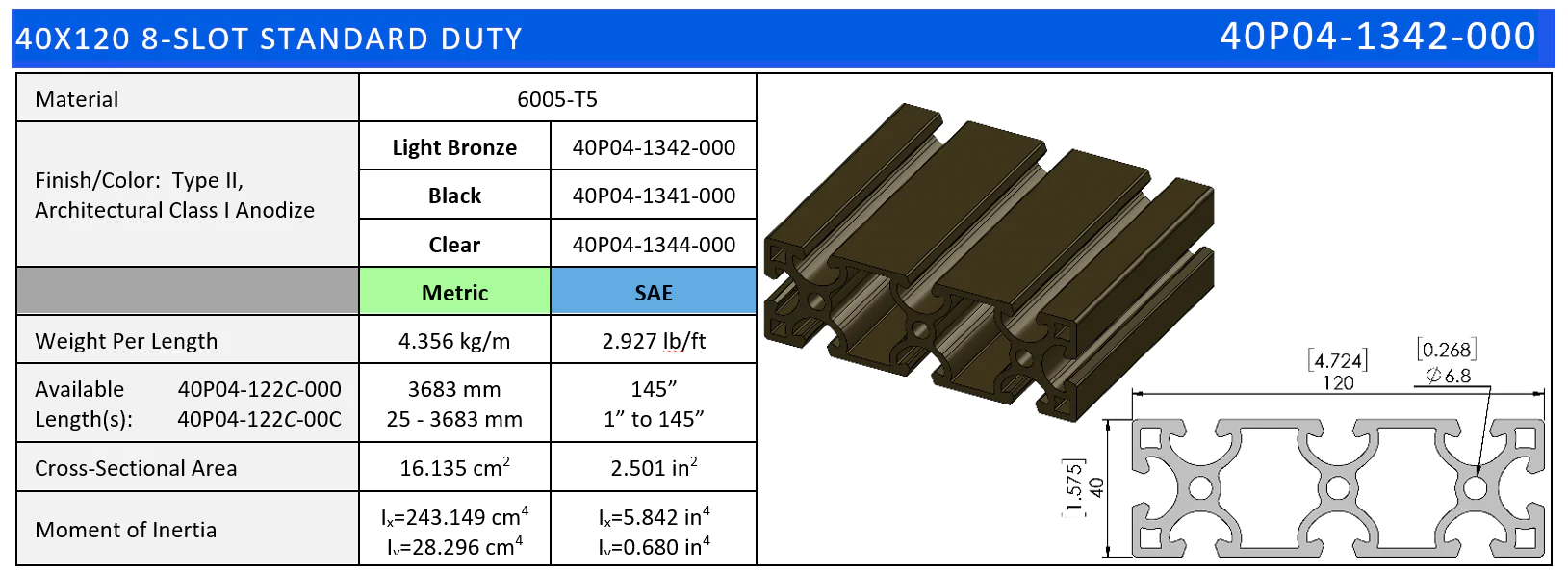

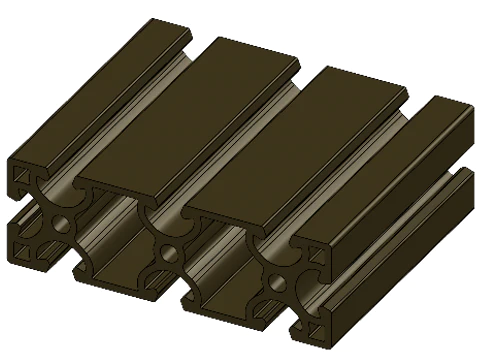

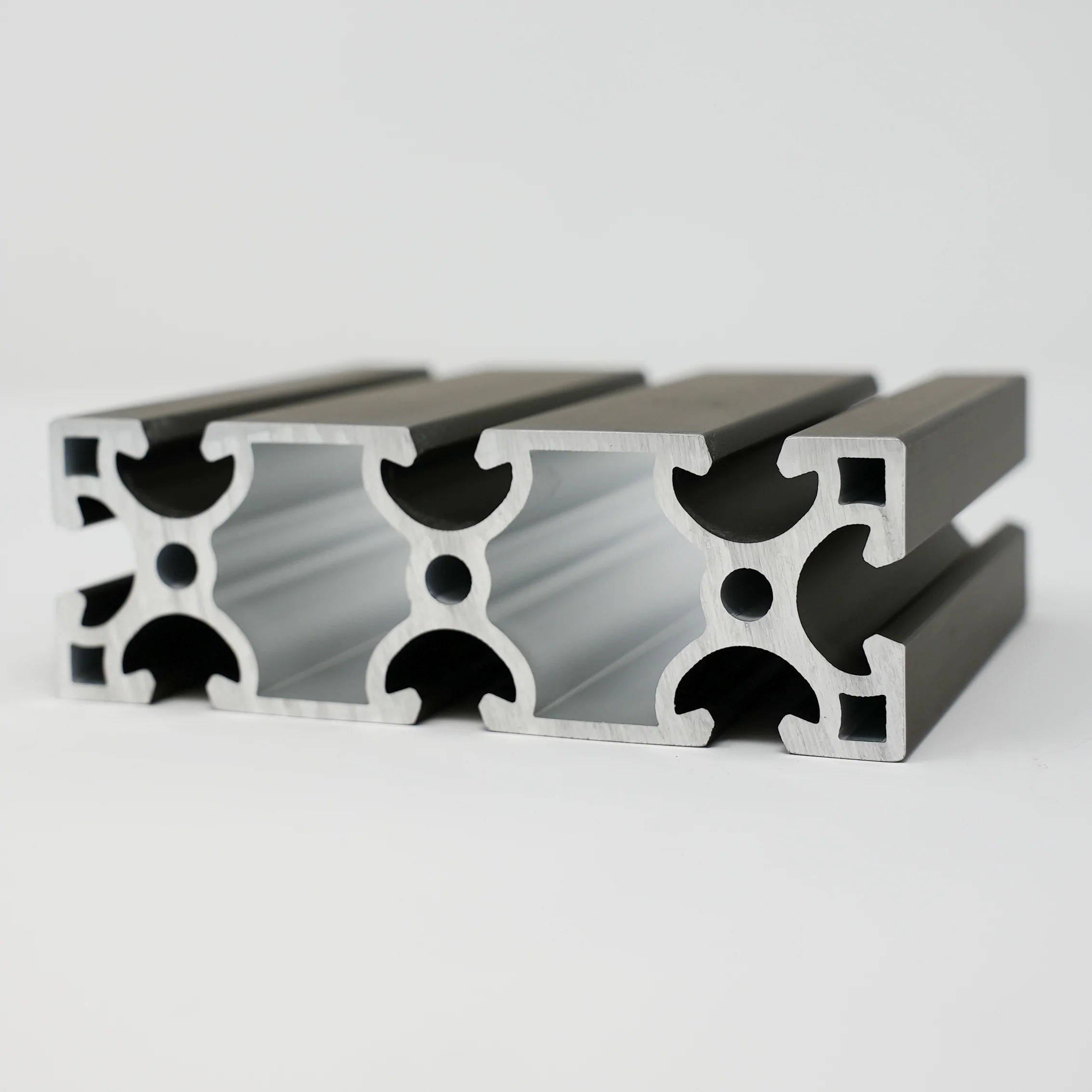

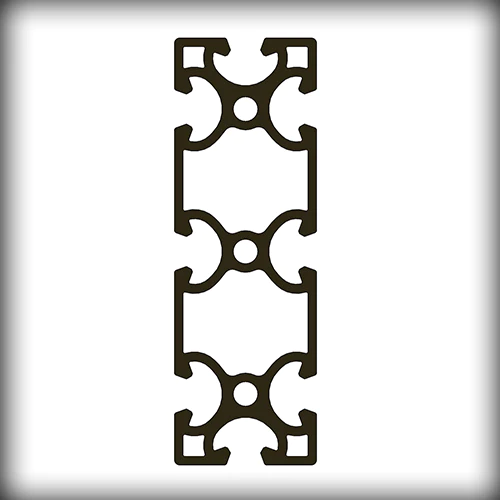

40x120 8-Slot SD
Click here to request a 3D model or files
Description:
40P04-1342-000
Load Ratings:
Translational Load |
|
|---|---|
| Tensile Load - Working Load (N) | 233,622 |
| Tensile Load - Working Load (lbf) | 52,565 |
| Shear X - Working Load (N) | 58,264 |
| Shear X - Working Load (lbf) | 13,109 |
| Shear Y - Working Load (N) | 50,333 |
| Shear Y - Working Load (lbf) | 11,325 |
Torsion |
|
|---|---|
| Torque - Working Load (N*m) | 1,351 |
| Torque - Working Load (in*lb) | 11,960 |
Bending Moment |
|
|---|---|
| Bending X - Working Moment (N*m) | 7,824 |
| Bending X - Working Moment (in*lb) | 69,239 |
| Bending Y - Working Moment (N*m) | 2,731 |
| Bending Y - Working Moment (in*lb) | 24,173 |
