20x120 3-Slot LD Panel Profile
Product #:
40P03-3031-00C: BLACK
40P03-3032-00C: LIGHT BRONZE
40P03-3034-00C: CLEAR
Description:

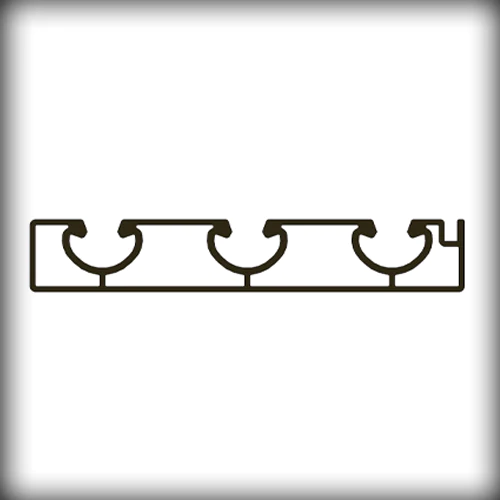

20mm X120mm Profile w/Panel Groove
The groove on our 20mm X 120mm profile allows you to capture up to 1/8" or 3mm thick panels in the groove. A common use for this product is for the construction of drawers with the grooves holding the drawer bottom in place.
Contact Sales for special sizing.
| Material | 6005-T5 | |
| Finish/Color: Type II, Architectural Class I Anodized | Light Bronze | 40P03-3032-000 |
| Black | 40p03-3031-000 | |
| Clear | 40p03-3034-000 | |
| METRIC | SAE | |
| Weight Per Length | 1.816 kg/m |
1.220 lb/ft |
|
Available Length(s)
40P04-1012-00 40P04-1012-00C |
3683 mm 25-3683 mm |
145" 1 to 145" |
| Cross-Sectional Area | 6.727 cm2 | 1.043 in2 |
| Moment Of Inertia |
Ix=3.552 cm4 Iy=92.294 cm4 |
Ix=0.085 in4 Iy=2.217 in4 |
×
