80mm 3-Way Corner Bracket Kit
Product #:
40C3W-0451-001-01
Description:

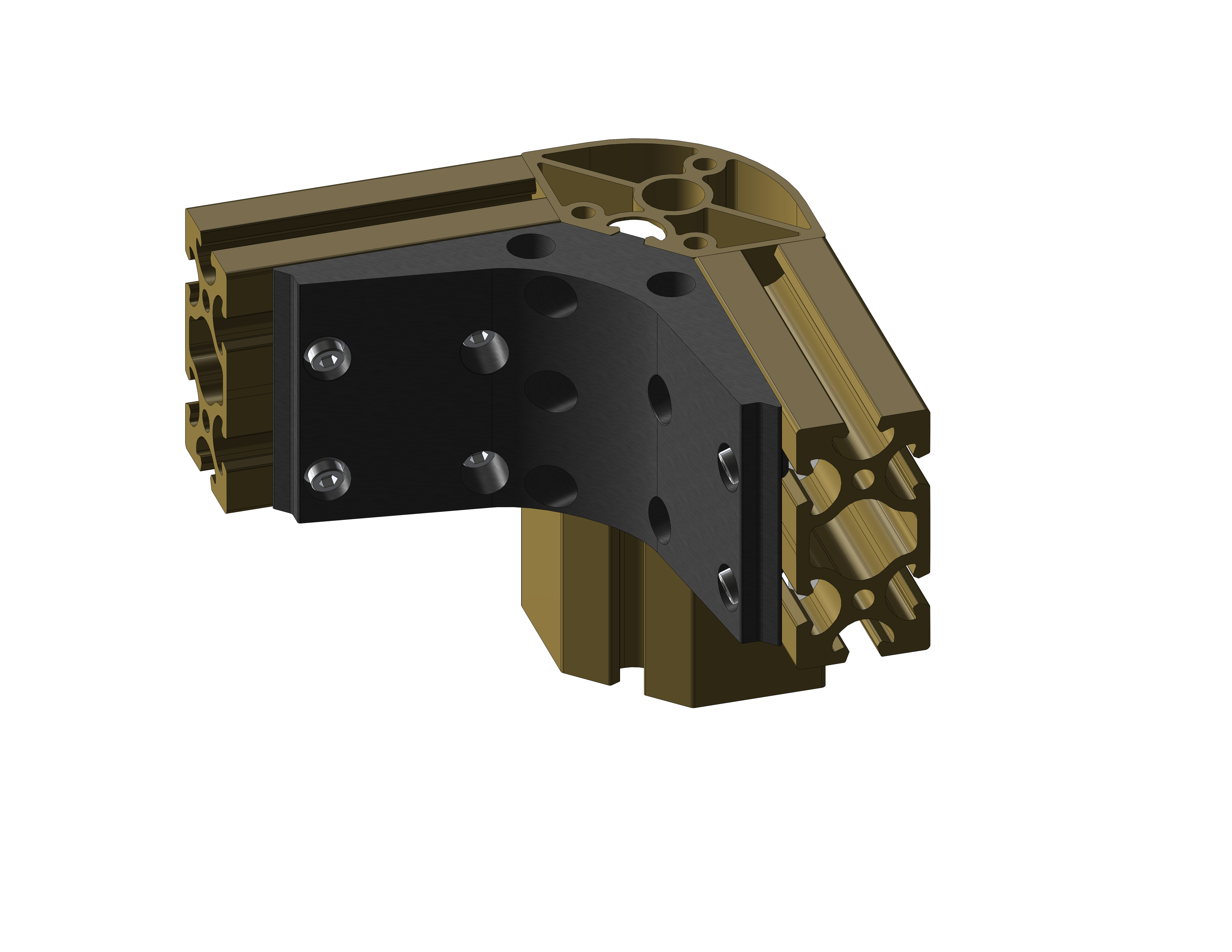

A bracket that can fasten a corner in three directions using our 70X70 3-Way Corner Profiles. You no longer need to have two to three brackets to properly secure a corner on your assembly.
A Better Bracket Solution
AngleLock's 3-Way Corner Bracket connects three profiles with one bracket for a more secure dependable, and often more cost effective solution. Download our whitepaper to learn more.
| Material | 6061-T6 | |
| Finish | Type II, Class 2 Anodize, Black | |
| Parts Included in Kit |
(1) 80mm 3-Way Bracket [40C3W-0451-001-00] (4) M6 60mm 2-Hole Angle Nut [40HAN-3407-005-00] (1) M6 78mm 3-Hole Angle Nut [40HAN-3407-009-00] (11) M6x1.0x20mm 12.9 Flanged SHCS [00HSW-3507-202-00] |
|
| METRIC | SAE | |
| Weight | 1.00 kg [1003 g] | 2.21 lbs [35.4 oz] |
×
Load Ratings:
Direct Loading |
|
|---|---|
| Vertical Working Load (N) | |
| Vertical Working Load (lbf) | |
| Horizontal Working Load (N) | |
| Horizontal Working Load (lbf) | |
| Vert./Horiz. Alternate Working Load (N) | |
| Vert./Horiz. Alternate Working Load (lbf) | |
| Tension Working Load (N) | |
| Tension Working Load (lbf) |
Torsion |
|
|---|---|
| Working Load (N·m) | 1,341 |
| Working Load (in·lb) | 11,869 |
| Working Load (N·m) | 1,478 |
| Working Load (in·lb) | 13,084 |
Moment |
|
|---|---|
| Working Load (N·m) | 1,089 |
| Working Load (in·lb) | 9,638 |
| Working Load (N·m) | 2,112 |
| Working Load (in·lb) | 18,691 |
| Working Load (N·m) | 1,399 |
| Working Load (in·lb) | 12,383 |
| Working Load (N·m) | - |
| Working Load (in·lb) | - |
