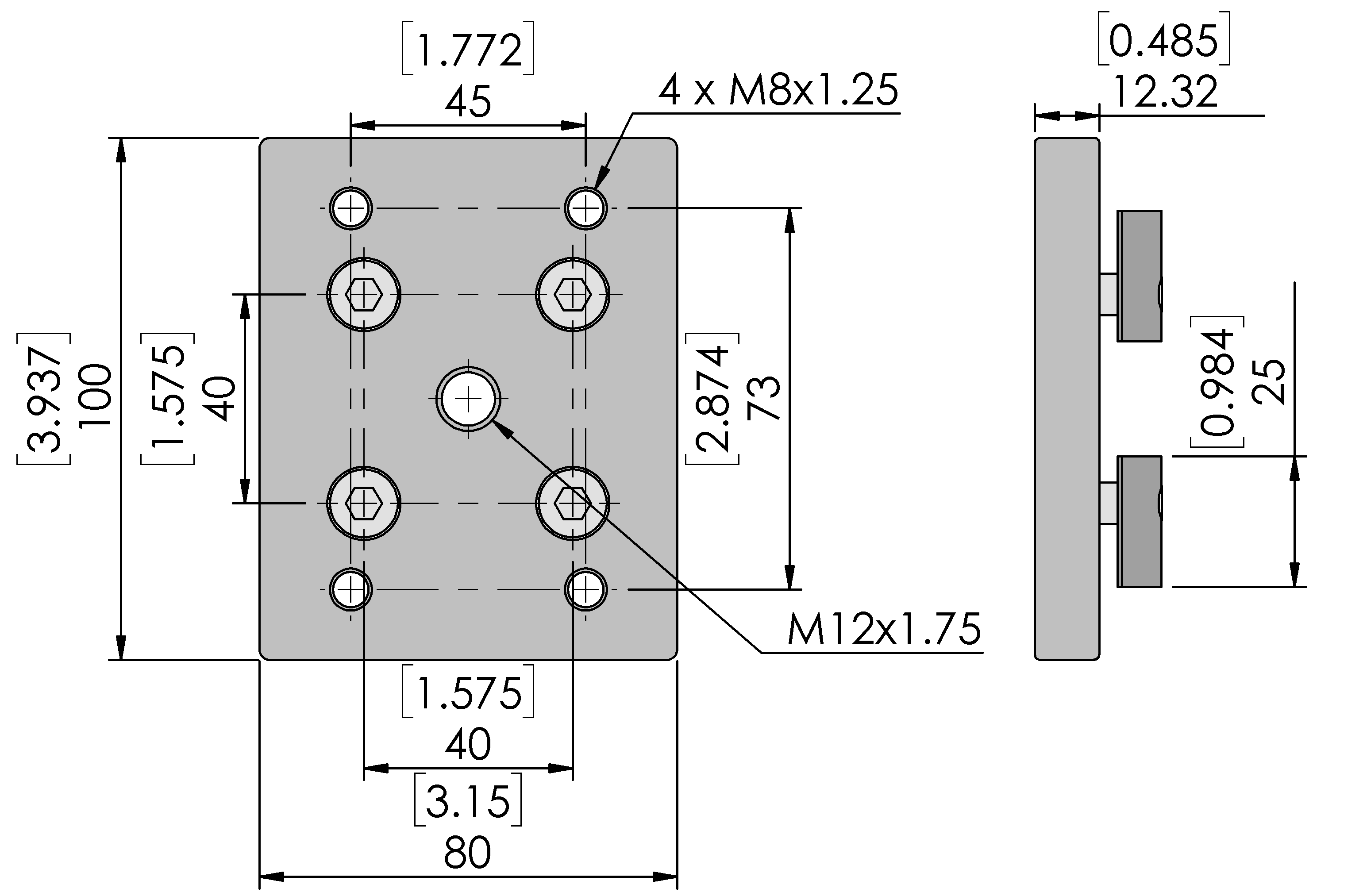

80x80 M12 Stem/Plate Caster Mounting Kit

Product #:

40DCP-0401-003-02

Contact Us For A Quote

Description:

Compatible Profile

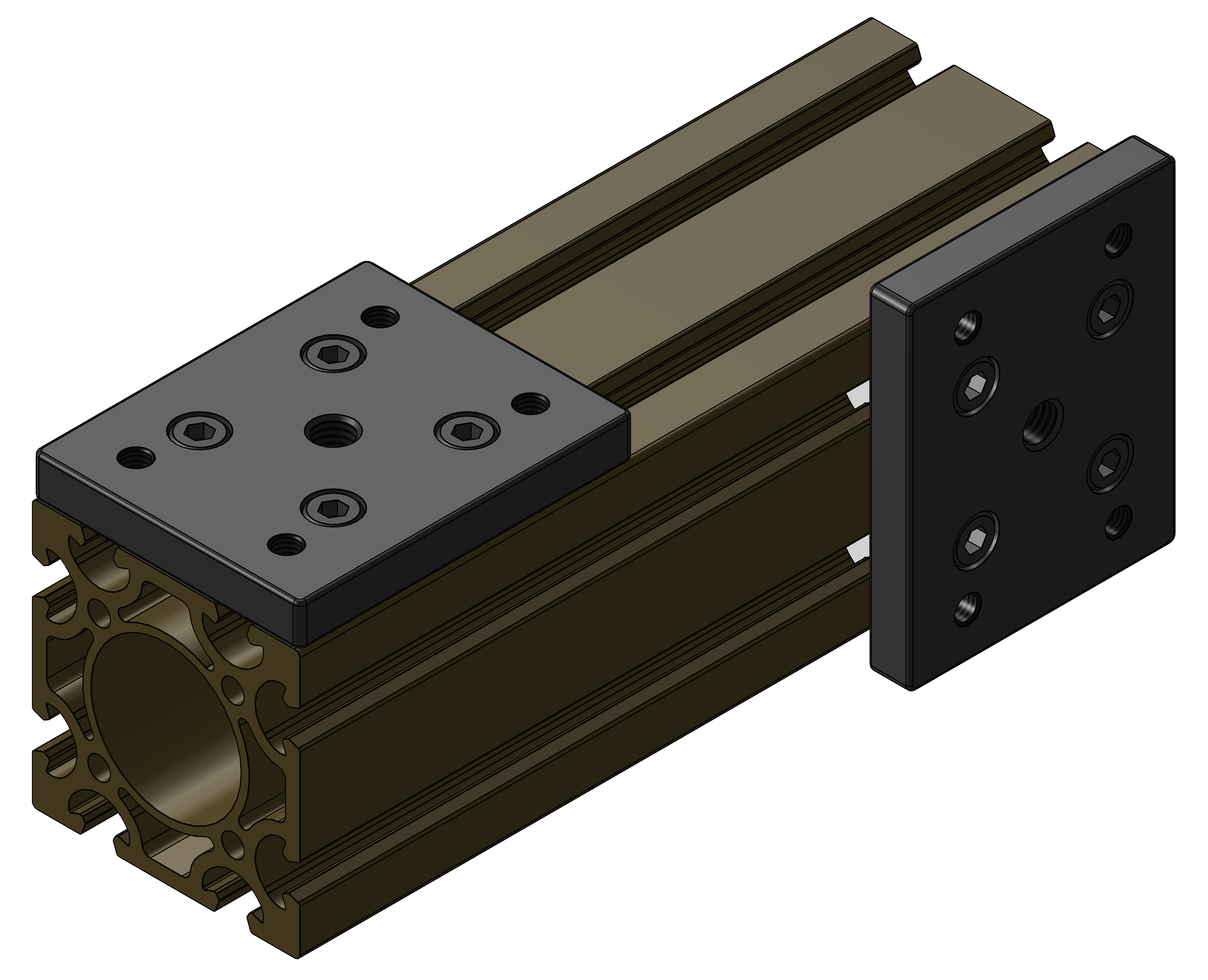

80X80 8-SLOT HEAVY DUTY / 40P05-224X-000.

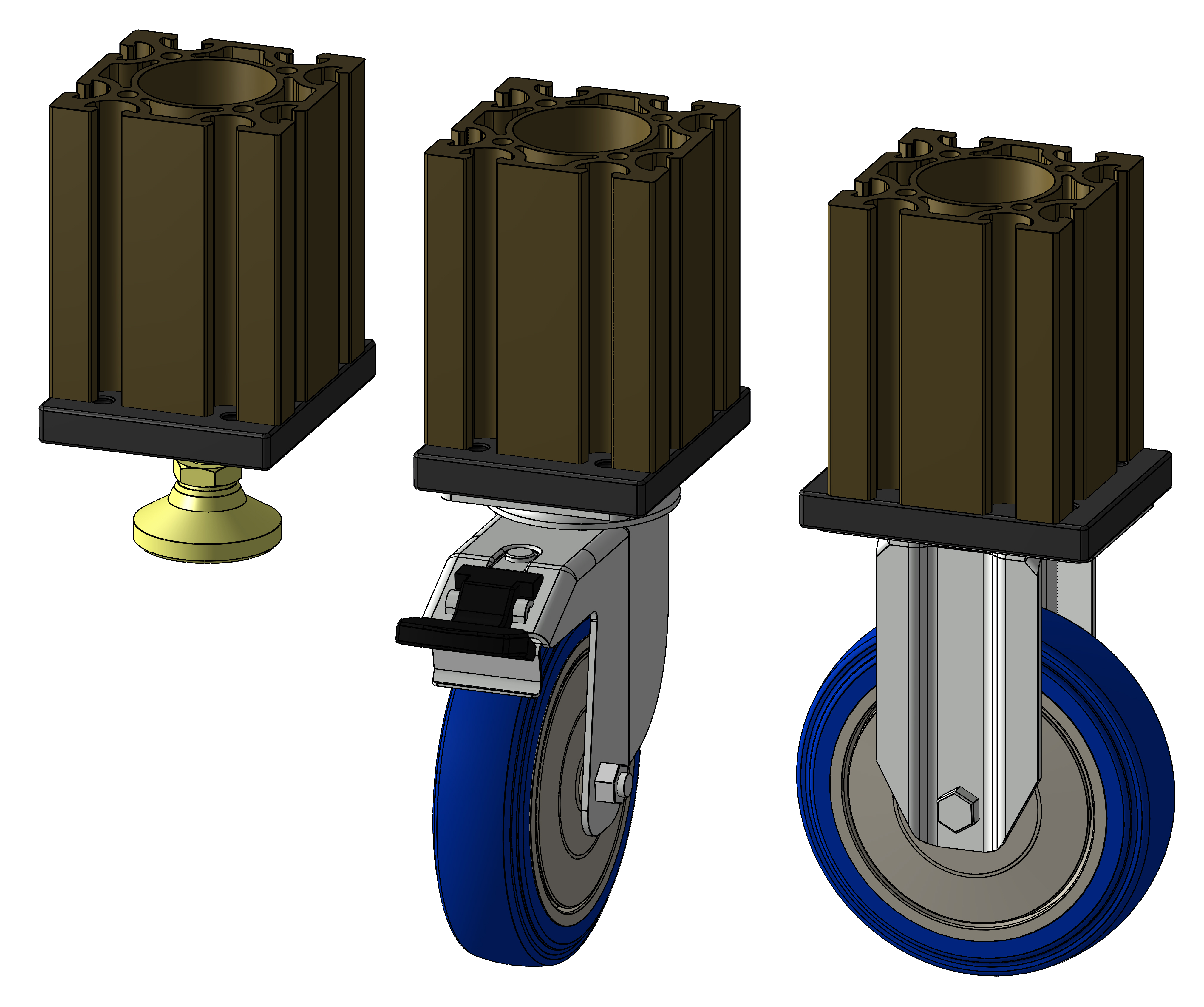

Compatible Components

M12 STEM MOUNT Ø75 mm CASTER W/TOTAL BRAKE (70 KG) / 00DCA-3300-001-00.
M12 STEM MT LEVELING FOOT (2000KG) / 00DLF-3600-001-00
M12 STEM MT ESD LEVELING CASTER-BLACK (250KG)/ 00DCA-3500-005-00
M12 STEM MOUNT LEVELING CASTER (250 KG) / 00DCA-3500-004-00.
PLATE MT Ø75MM FIXED CASTER (70KG) / 00DCA-3300-002-00
PLATE MT Ø75MM SWIVEL CASTER W/TOTAL BRAKE (70KG) / 00DCA-3300-003-00
PLATE MOUNT SWIVEL LEVELING CASTER (250 KG / 00DCA-3500-003-00
PLATE MOUNT Ø125mm SWIVEL CASTER W/TOTAL BRAKE (125 KG) /00DCA-3400-002-00.
PLATE MOUNT Ø125mm FIXED CASTER (125 KG) /00DCA-3400-001-00.

Material	6061-T6
Finish	Type II, Class 2 Anodize, Black
Parts Included in Kit	(1) 80x80 M12 Stem/Plate Caster Mount [40DCP-0401-003-00] (4) M8x1.25x16mm 10.9 Black Oxide SHCS [00HSW-3401-002-00] (4) M8 25mm 1-Hole Std. Offset Nut {40HSN-3507-001-00]
	METRIC	SAE
Weight	0.37 kg [371 g]	0.82 lbs [13.1 oz]

×
