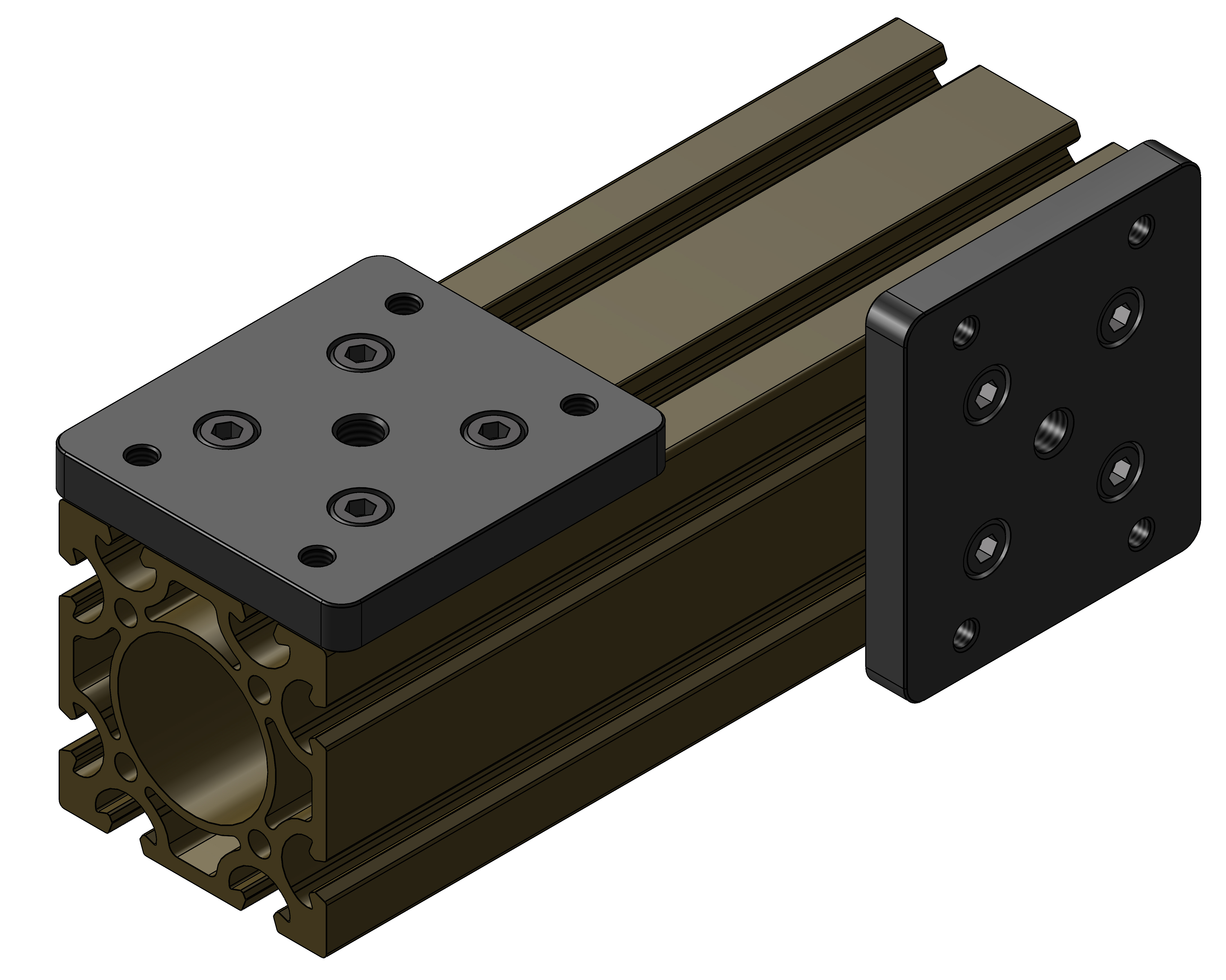

80x80 M12 Stem/HD Plate Caster Mounting Kit
Product #:
40DCP-0401-010-02
Description:
Profile
- 80X80 8-SLOT HEAVY DUTY / 40P05-224X-000.

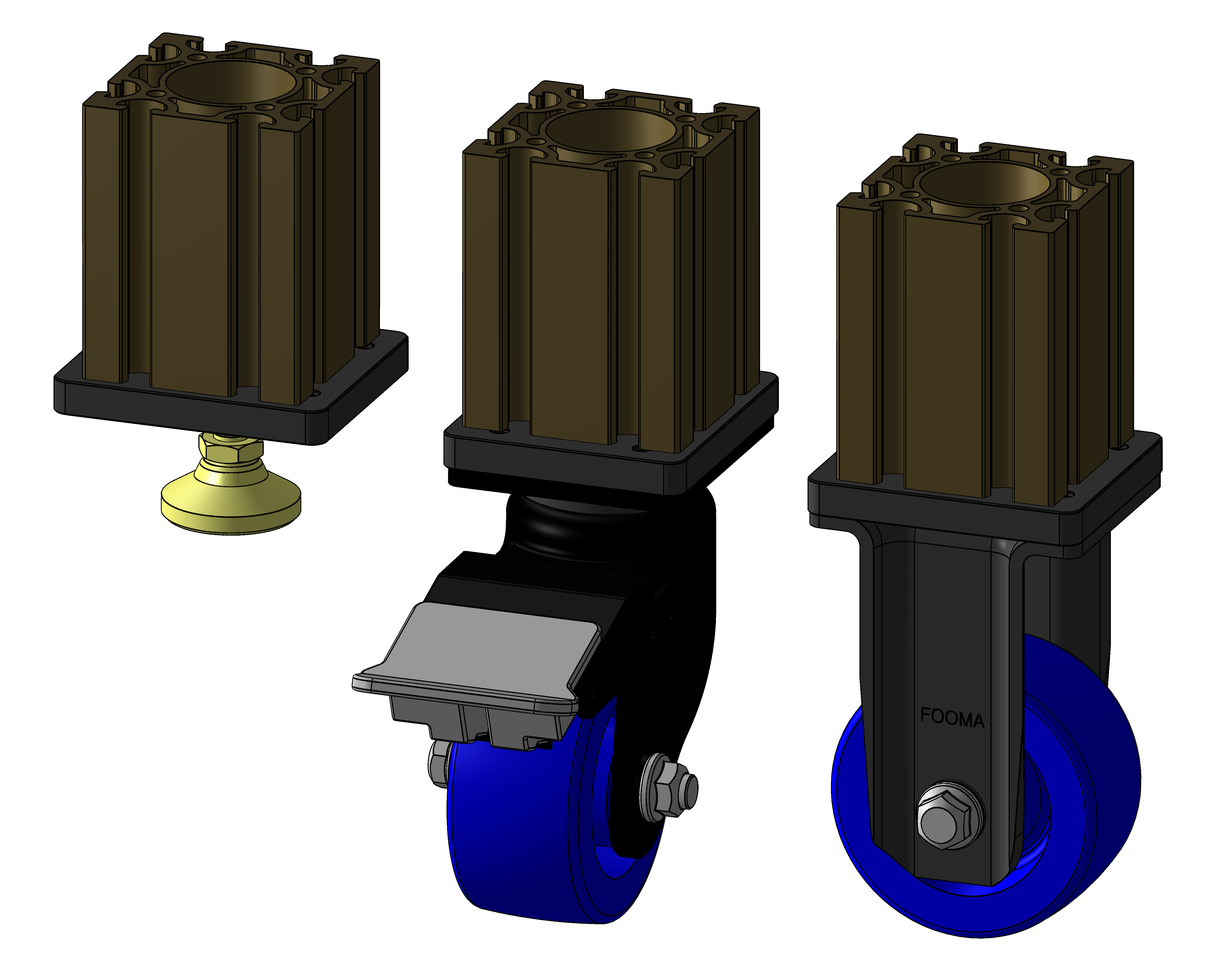

Caster
- M8 STEM MOUNT Ø50mm CASTER W/TOTAL BRAKE (40 KG) / 00DCA-3200-001-00
- M12 STEM MOUNT Ø75 mm CASTER W/TOTAL BRAKE (70 KG) / 00DCA-3300-001-00.
- M12 STEM MOUNT LEVELING CASTER (250 KG) / 00DCA-3500-004-00.
- PLATE MOUNT Ø 100mm SWIVEL CASTER W/TOTAL BRAKE (400 kg) / 00DCA-3500-002-00.
- PLATE MOUNT Ø 100mm FIXED CASTER (400 kg) / 00DCA-3500-001-00.
- M8 STEM MOUNT Ø50mm CASTER W/TOTAL BRAKE (40 KG) / 00DCA-3200-001-00
| Material | 6061-T6 | |
| Finish | Type II, Class 2 Anodize, Black | |
| Parts Included in Kit |

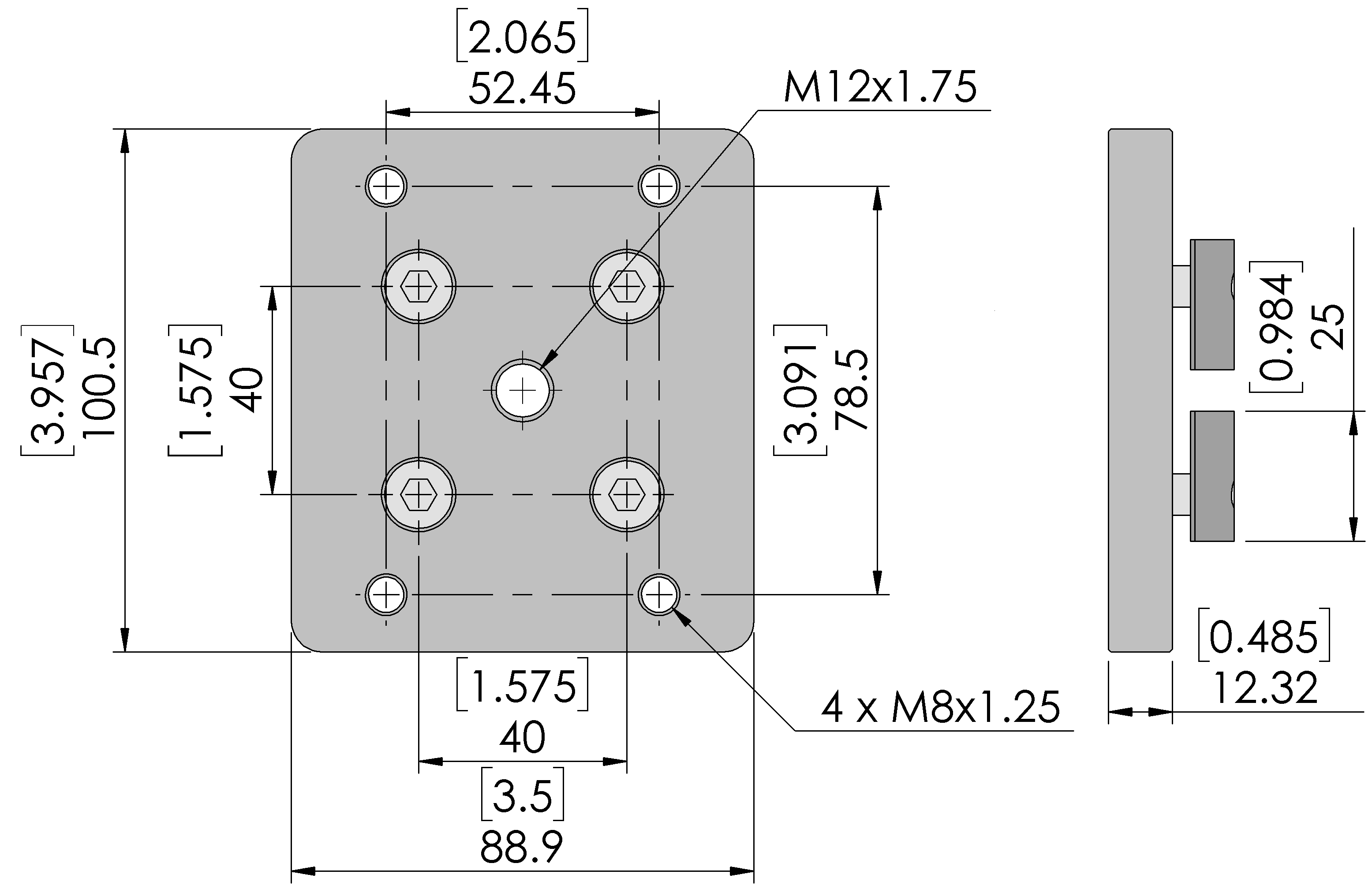

(1) 80x80mm M12 Stem/HD Caster End Mount [40DCP-0401-010-00] (4) M8x1.25x16mm 10.9 Black Oxide SHCS [00HSW-3401-002-00] (4) M8 25mm 1-Hole Std. Offset Nut [40HSN-3507-001-00] |
|
| METRIC | SAE | |
| Weight | 0.40 kg [401 g] | 0.88 lbs [14.1 oz] |
×
