70x70 M16 Stem/HD Plate Caster End Mounting Kit
.png)
Product #:
40DCP-0501-002-01
Description:

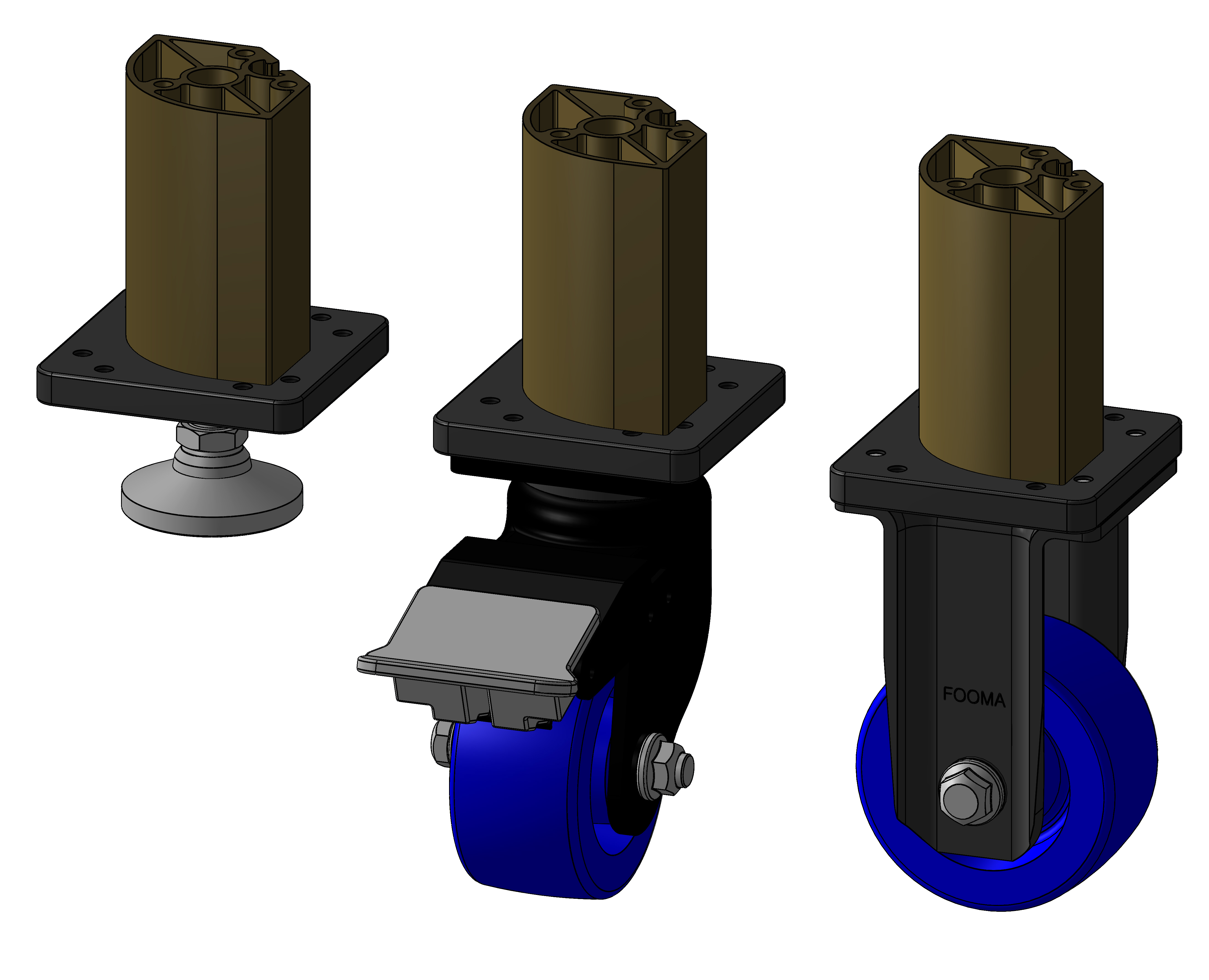

Compatible Profiles
- 70X70 1-SLOT 3-WAY CORNER STANDARD / 40P04-771X-000
- 70X70 3-SLOT 3-WAY CORNER STANDARD / 40P04-773X-000
- 70X70 3-SLOT 3-WAY INSET PANEL / 40P04-773X-010.
Compatible components
- PLATE MOUNT Ø 100mm SWIVEL CASTER W/TOTAL BRAKE (400 kg) / 00DCA-3500-002-00.
- PLATE MOUNT Ø 100mm FIXED CASTER (400 kg) / 00DCA-3500-001-00.
| Material | 6061-T6 | |
| Finish | Type II, Class 2 Anodize, Black | |
| Parts Included in Kit |
(1) 70x70 M16 Stem/HD Plate Caster End Mount [40DCP-0501-002-00 ] (3) M8x1.25x16mm 10.9 Black Oxide SHCS [00HSW-3401-002-00] |
|
| METRIC | SAE | |
| Weight | 0.34 kg [345 g] | 0.75 lbs [12.0 oz] |
×
