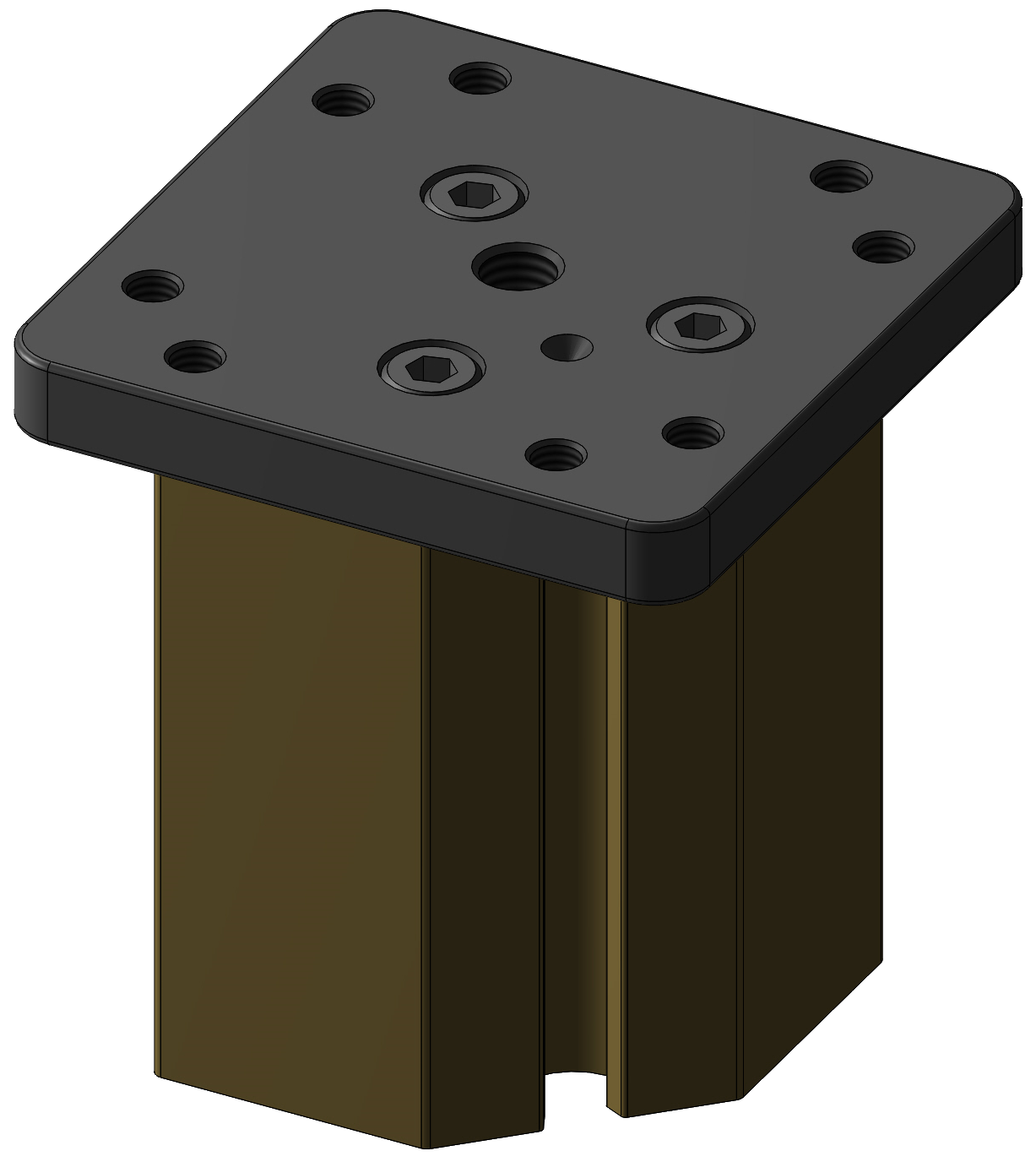

70x70 M12 Stem/HD Plate Caster End Mounting Kit
Product #:
40DCP-0401-008-01
Description:
Profile
- 70X70 1-SLOT 3-WAY CORNER STANDARD / 40P04-771X-000
- 70X70 3-SLOT 3-WAY CORNER STANDARD / 40P04-773X-000
- 70X70 3-SLOT 3-WAY INSET PANEL / 40P04-773X-010.

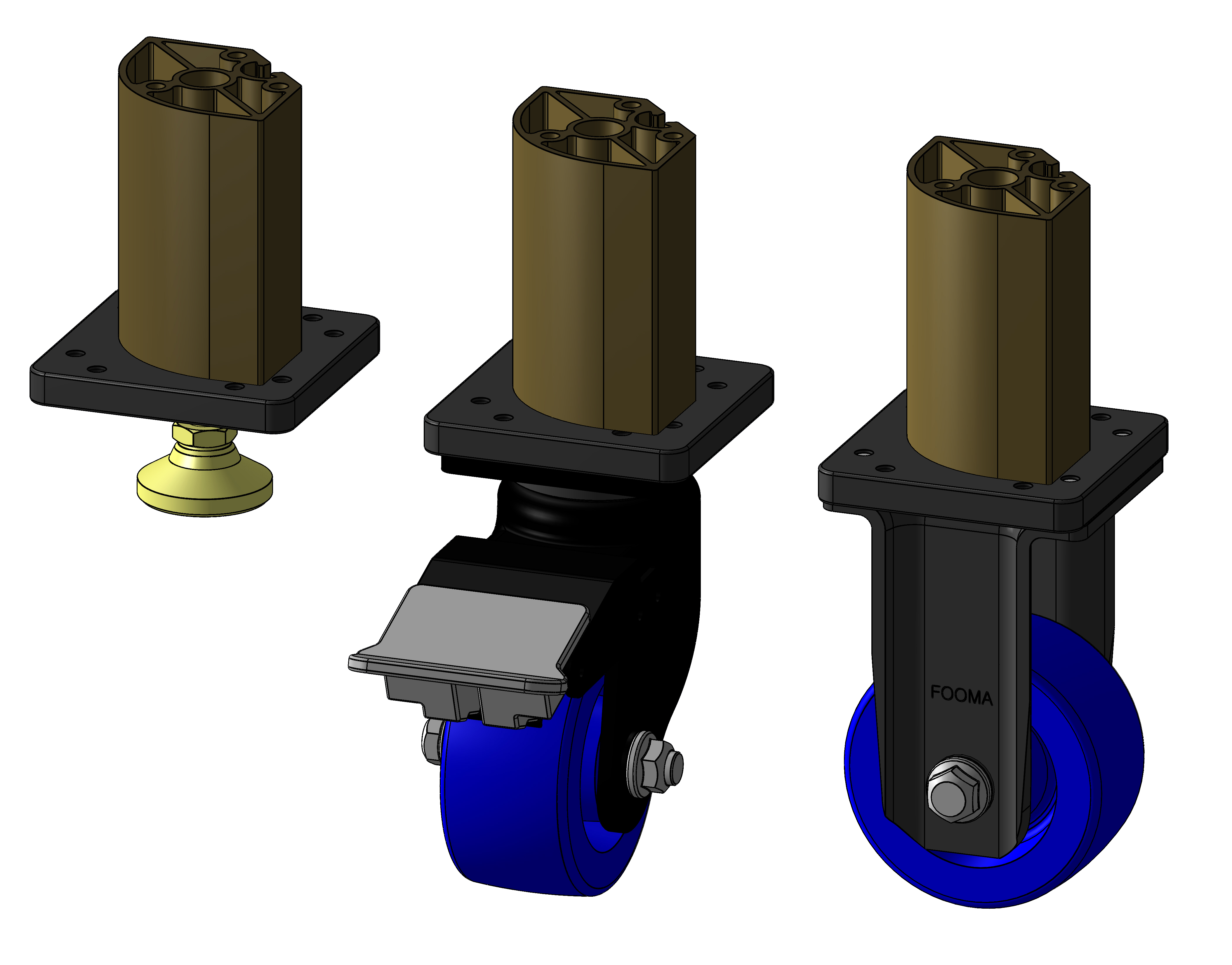

Caster
- M8 STEM MOUNT Ø50mm CASTER W/TOTAL BRAKE (40 KG) / 00DCA-3200-001-00
- M12 STEM MOUNT Ø75 mm CASTER W/TOTAL BRAKE (70 KG) / 00DCA-3300-001-00.

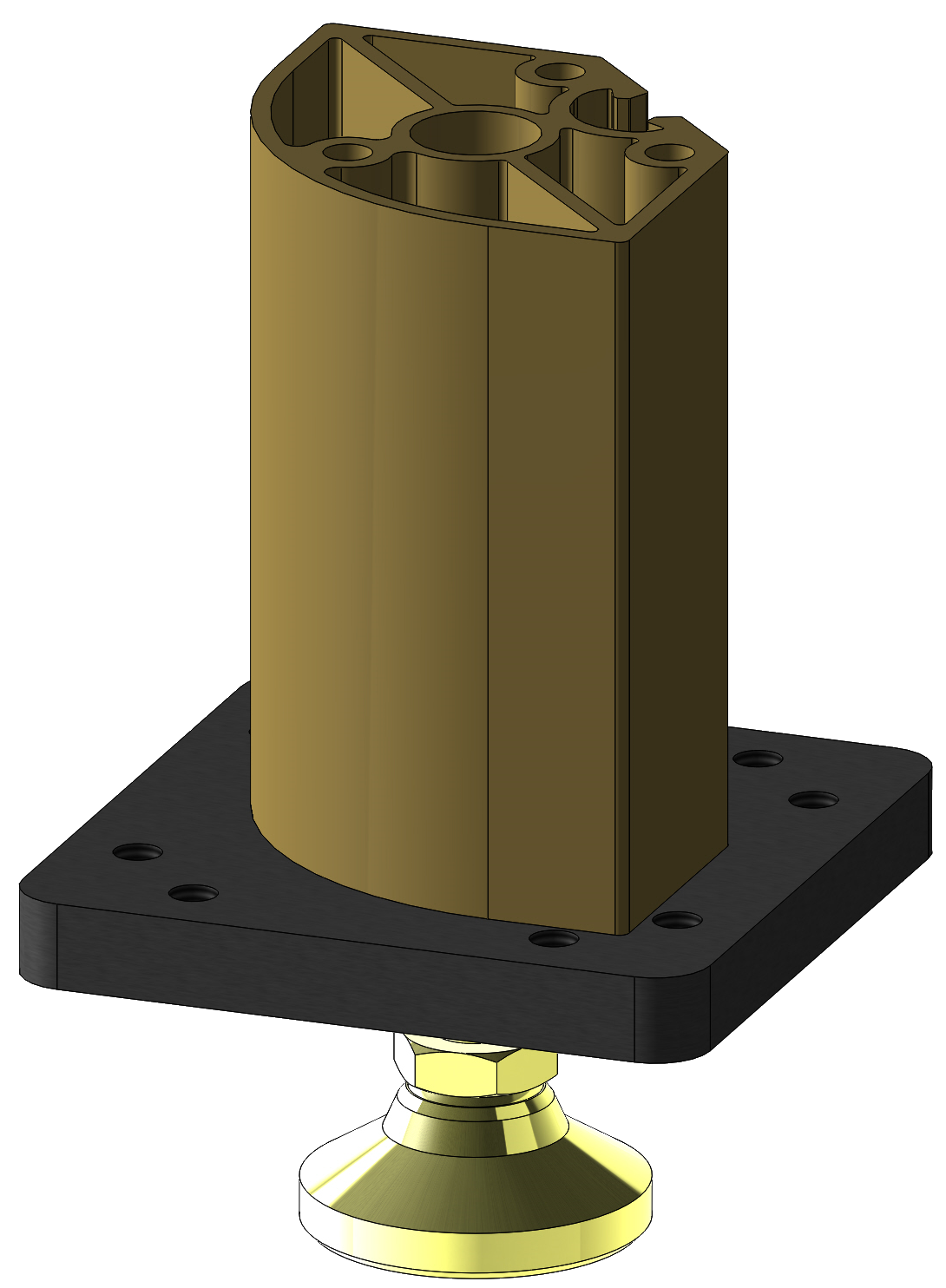

- M12 STEM MOUNT LEVELING CASTER (250 KG) / 00DCA-3500-004-00.

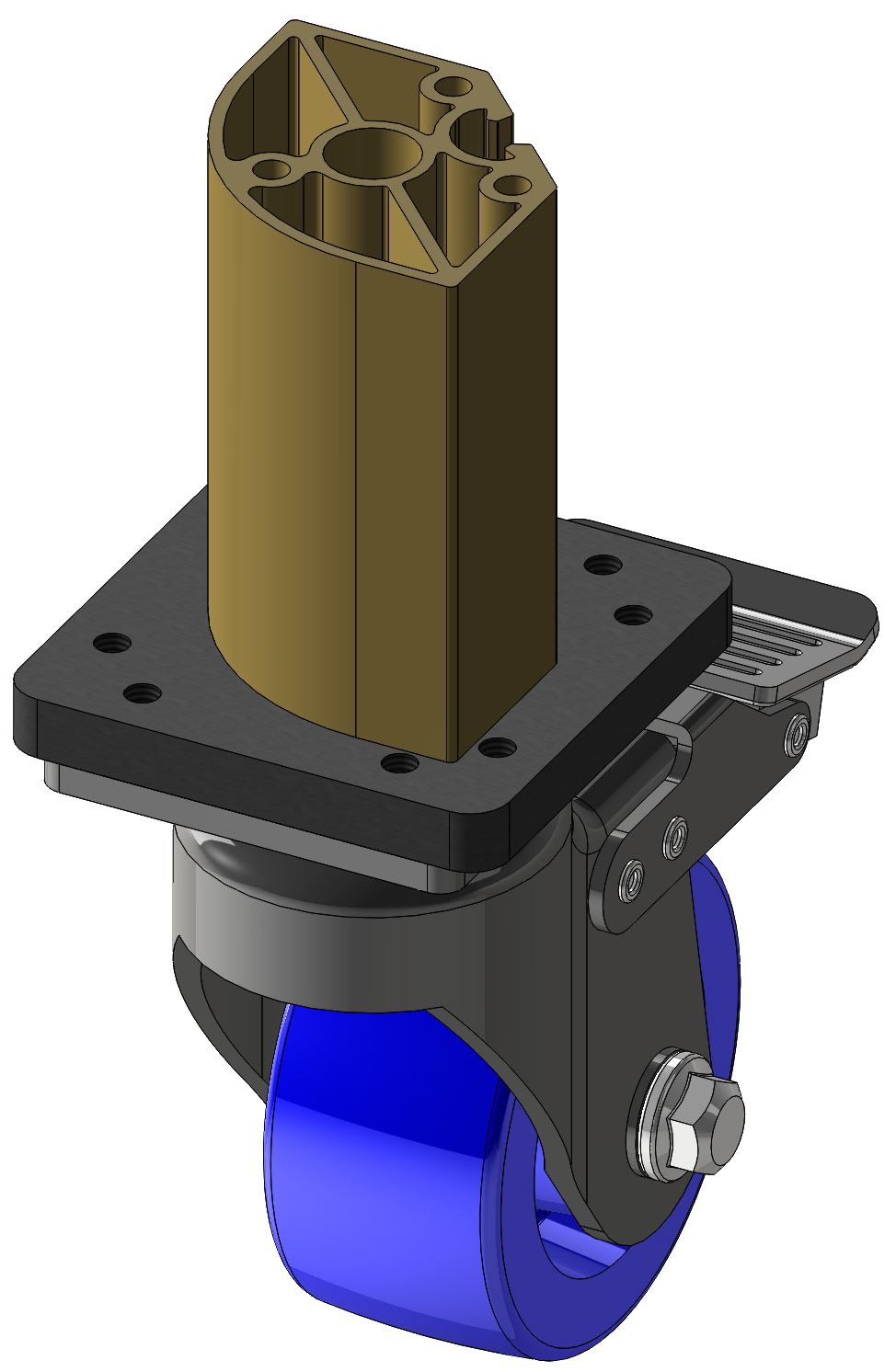

- PLATE MOUNT Ø 100mm SWIVEL CASTER W/TOTAL BRAKE (400 kg) / 00DCA-3500-002-00.

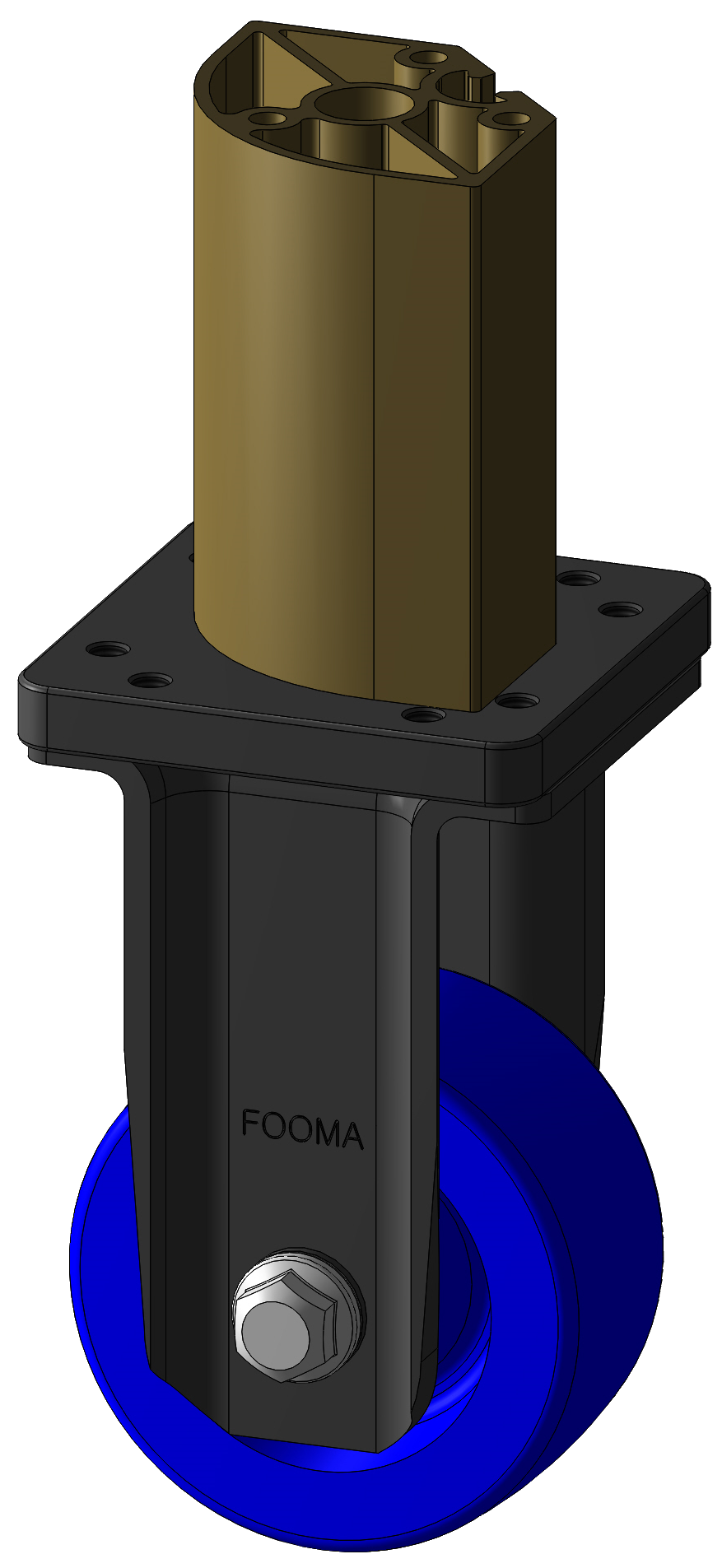

- PLATE MOUNT Ø 100mm FIXED CASTER (400 kg) / 00DCA-3500-001-00.
| Material | 6061-T6 | |
| Finish | Type II, Class 2 Anodize, Black | |
| Parts Included in Kit |

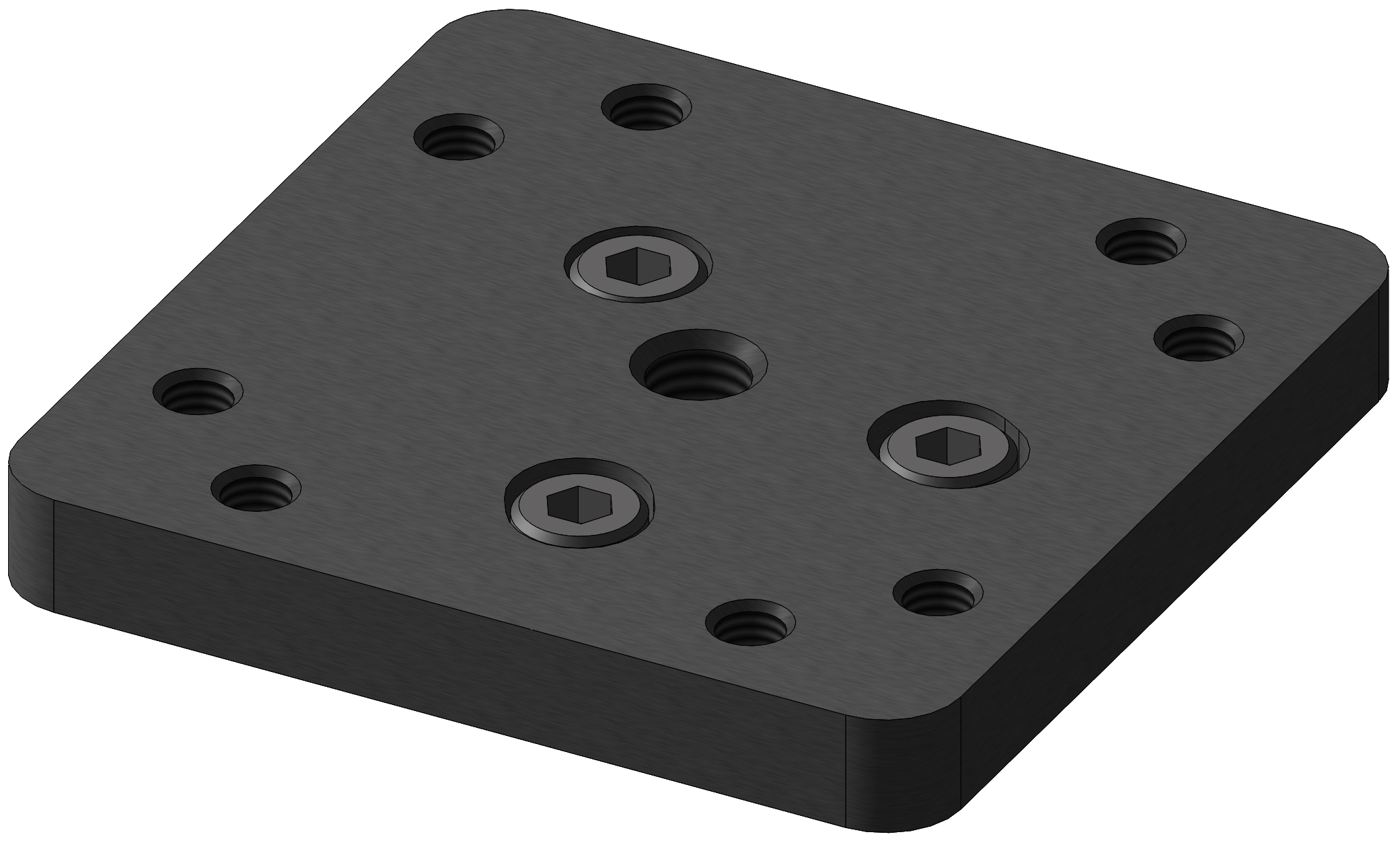

(1) 70x70 M12 Stem/HD Plate Caster End Mount [40DCP-0401-008-00] (3) M8x1.25x16mm 10.9 Black Oxide SHCS [00HSW-3401-002-00] |
|
| METRIC | SAE | |
| Weight | 0.34 kg [345 g] | 0.76 lbs [12.2 oz] |
×
