70x70 HD Floor Anchor Plate
Product #:
40DFA-0501-001-01
Description:

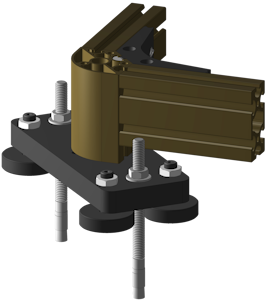

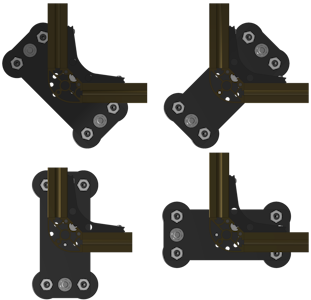

This heavy-duty anchor plate is designed to hold 70x70 profiles securely in place. It features two holes—positioned at the front and back—to accommodate concrete anchors, ensuring strong and stable floor mounting. Ideal for heavy-duty frames, machine bases, and anchored structural systems.
| Material | 6061-T6 | |
| Finish | Type II, Class 2 Anodize, Black | |
| Parts Included in Kit |
(1) 70x70 HD Floor Anchor Plate [40DFA-0501-001-00] (1) M20x1.5x45mm 7075-T6 Special Flat SHCS [00HSW-0400-800-00] (2) M8x1.25x25mm SHCS [00HSW-3501-020-00] (1) M6x1.0x12mm 18-8 SS Flat SHCS-LH Thread [00HSW-3400-300-00] (2) 1/2"-13 X 7" Anchor Bolt [00HSW-3407-900-00] (4) M14 Leveling Puck [00DLF-3501-001-00] (4) M14x2.0x50mm 12.9 Flat Tip Set Screw [00HSW-3501-600-00] (4) M14x2.0 Jam Nut [00HNT-3304-001-00] |
|
| METRIC | SAE | |
| Weight | 3.42 kg [ 3417 g] | 7.53 lbs [120.5 oz] |
×
