40x80 M16 Stem/HD Plate Caster Profile Mounting Kit
Product #:
40DCP-0501-001-02
Description:

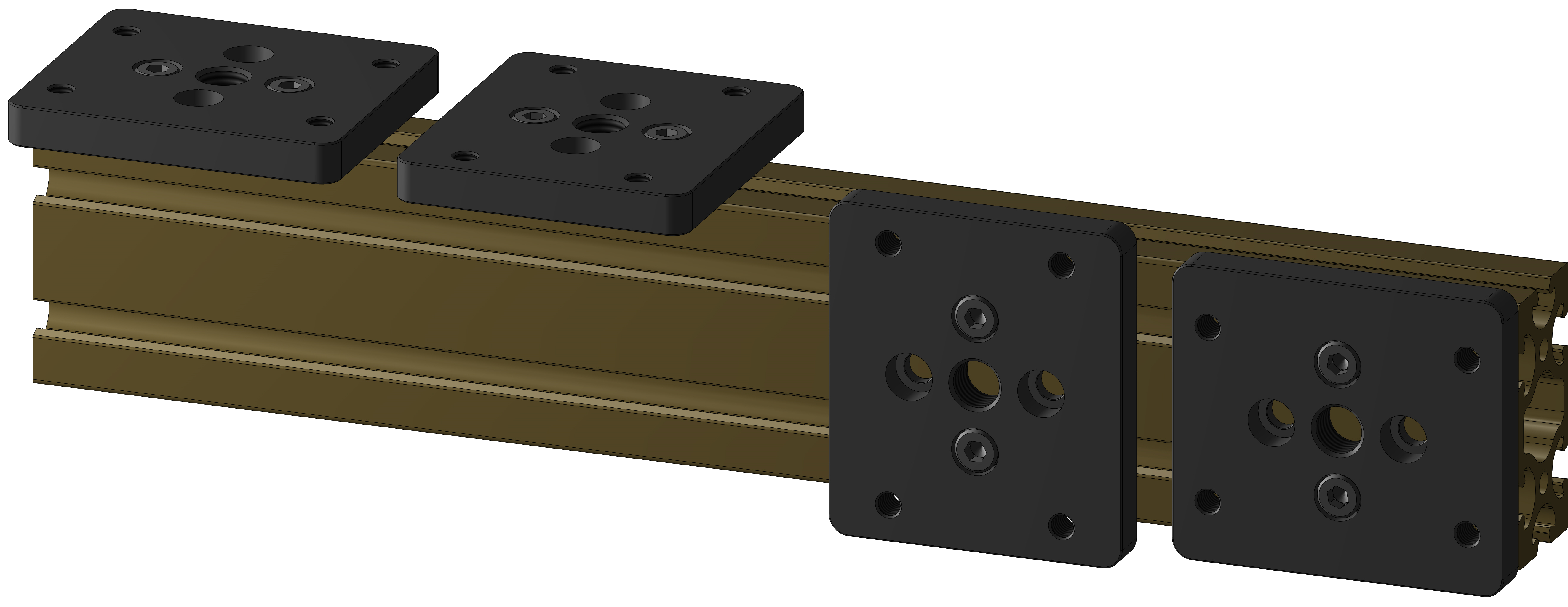

Compatible Profiles
- 40X80 6-SLOT HEAVY DUTY / 40P03-001X-000.
- 40X80 3-SLOT 90° STANDADARD DUTY / 40P04-122X-000.
- 50X80 4-SLOT SINGLE FLANGE LIGHT DUTY / 40P03-123X-010

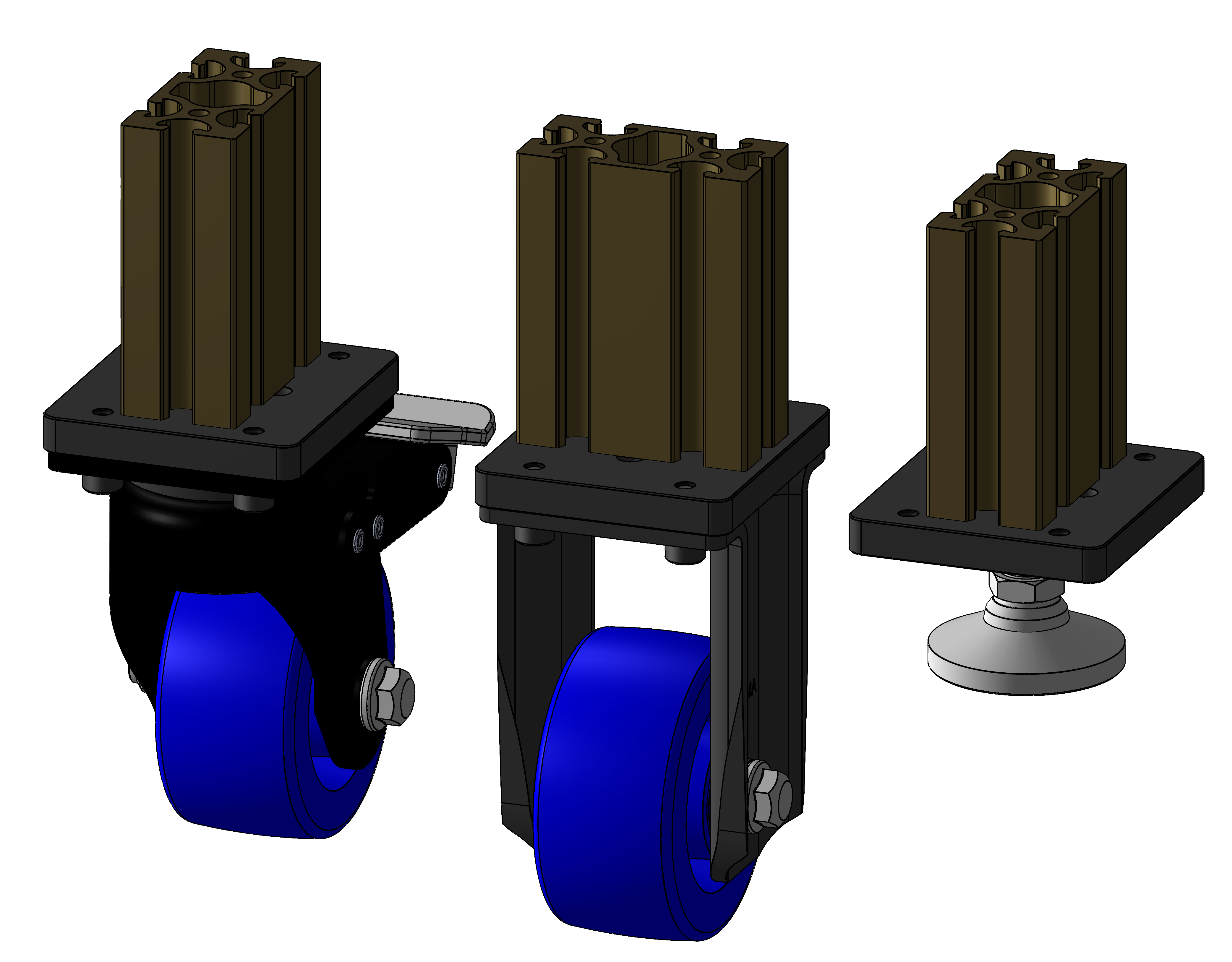

Compatible Components
- PLATE MOUNT Ø 100mm SWIVEL CASTER W/TOTAL BRAKE (400 kg) / 00DCA-3500-002-00.
- PLATE MOUNT Ø 100mm FIXED CASTER (400 kg) / 00DCA-3500-001-00.
| Material | 6061-T6 | |
| Finish | Type II, Class 2 Anodize, Black | |
| Parts Included in Kit |
(1) 40x80 M16 Stem/HD Plate Caster Mount [40DCP-0501-001-00 ] (2) M8x1.25x16mm 10.9 SHCS [00HSW-3401-002-00] (2) M8x1.25mm 25mm 1-Hole Std. Offset Nut [40HSN-3507-001-00] |
|
| METRIC | SAE | |
| Weight | 0.33 kg [336 g] | 0.73 lbs [11.9 oz] |
×
