70x70 3-Slot 3-Way SD 3mm Panel Profile
Product #:

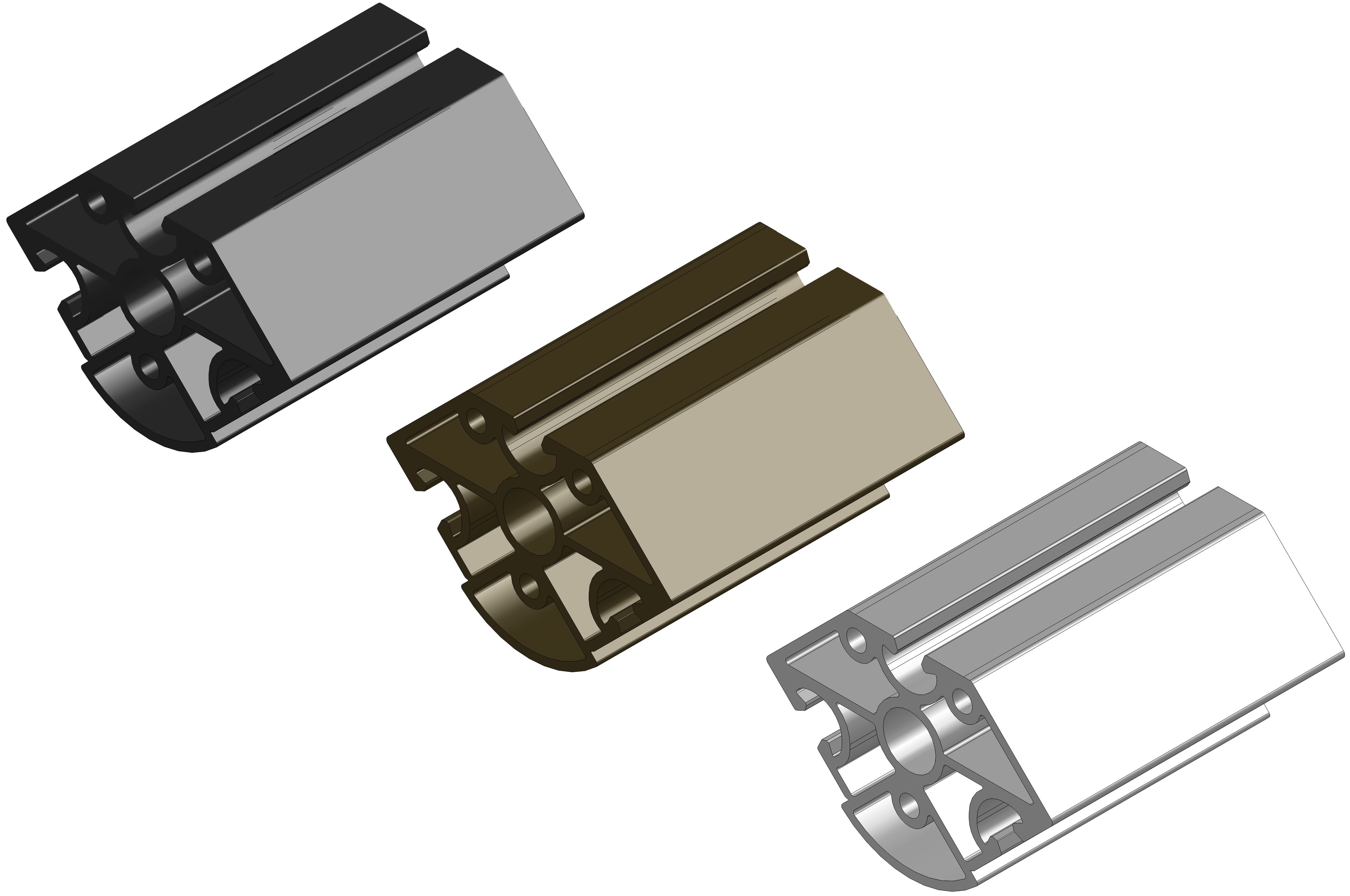

40P04-7731-02C: Black
40P04-7732-02C: Light Bronze
40P04-7734-02C: Clear
Description:
| Material | 6005-T5 | |
| Finish/Color: Type II, Architectural Class I Anodized | Light Bronze | 40P04-7732-020 |
| Black | 40P04-7731-020 | |
|
Clear |
40P04-7734-020 | |
| METRIC | SAE | |
| Weight Per Length | 4.55 kg/m | 3.06 lb/ft |
|
Available Length(s)
40P04-773X-000 40P04-773X-00C
|
3683 mm 25-3683 mm |
145 in 1 in to 145 in |
| Cross-Sectional Area | 16.85 cm2 | 2.612 in2 |
| Moment Of Inertia |
Ix=75.826 cm4 Iy=75.826 cm4 |
Ix=1.822 in4 Iy=1.822 in4 |
×
