M8x1.25x25mm 10.9 Drop-In T-Stud

Catalog Spec Sheet

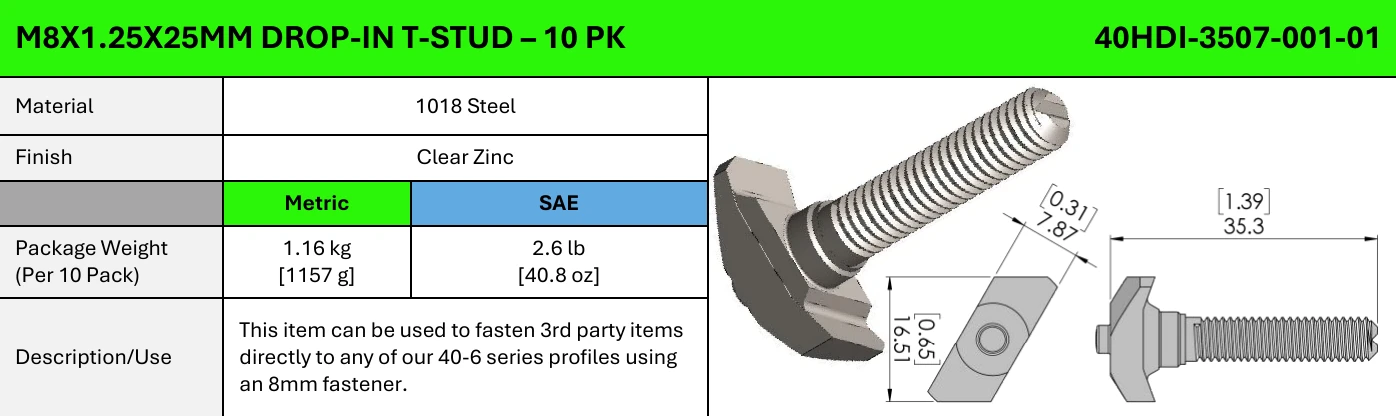

M8x1.25x25mm 10.9 Drop-In T-Stud specifications

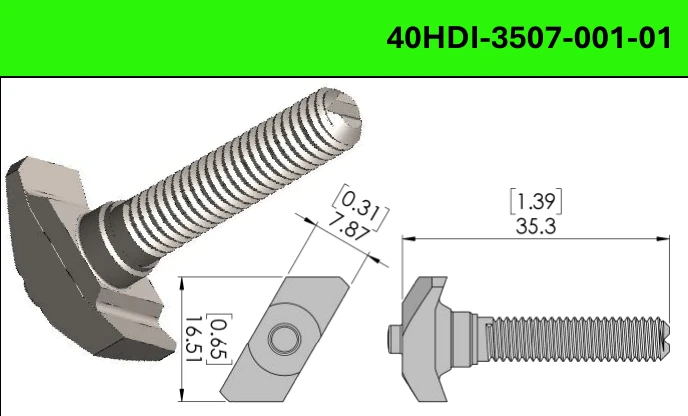

M8x1.25x25mm 10.9 Drop-In T-Stud dimensional drawing and assembled-in-use view

Hardware

M8x1.25x25mm 10.9 Drop-In T-Stud

Larger T-stud assembly kit, M8x1.25x25mm grade 10.9.

Part number

40HDI-3507-001-01

Specifications

Request a QuoteCall (262) 421-8840

CAD Files

Download STEPDownload SolidWorks
