M6x1.0 20mm 1-Hole Std Offset Nut

Catalog Spec Sheet

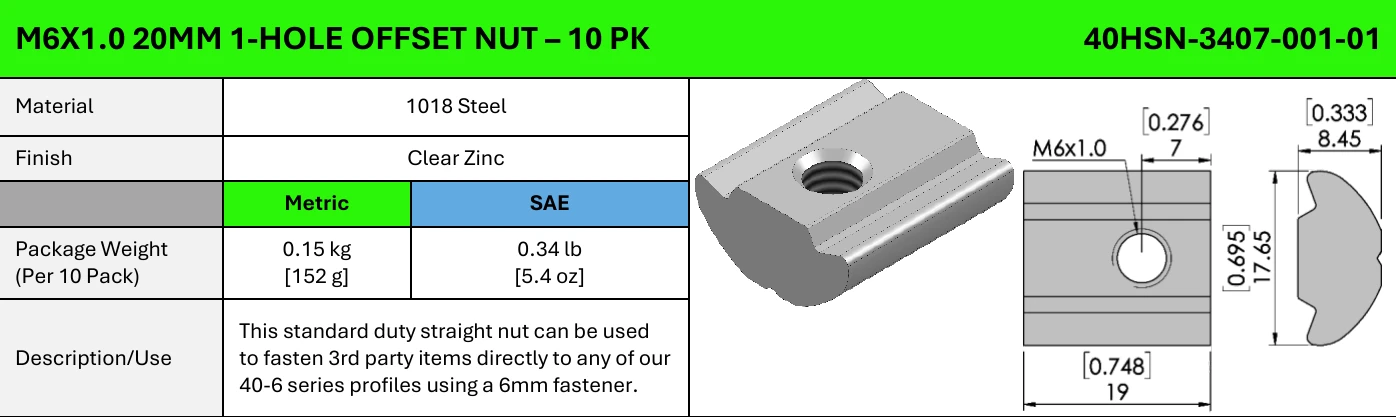

M6x1.0 20mm 1-Hole Std Offset Nut specifications

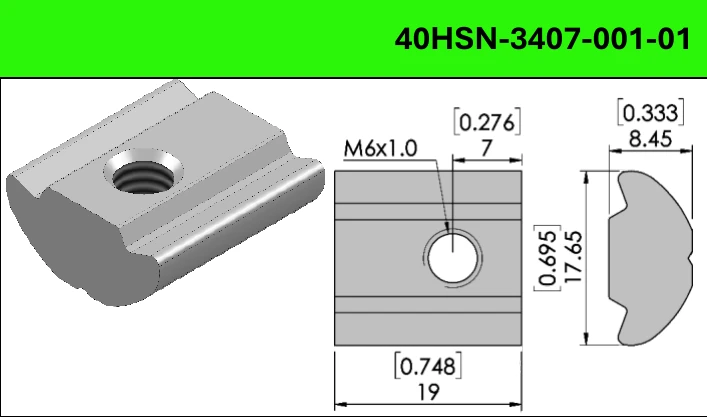

M6x1.0 20mm 1-Hole Std Offset Nut dimensional drawing and assembled-in-use view

Hardware

M6x1.0 20mm 1-Hole Std Offset Nut

Single-hole offset nut, M6x1.0, 20mm.

Part number

40HSN-3407-001-01

Specifications

Request a QuoteCall (262) 421-8840

CAD Files

Download STEPDownload SolidWorks
