M8x1.25 10.9 Flange Nut

Catalog Spec Sheet

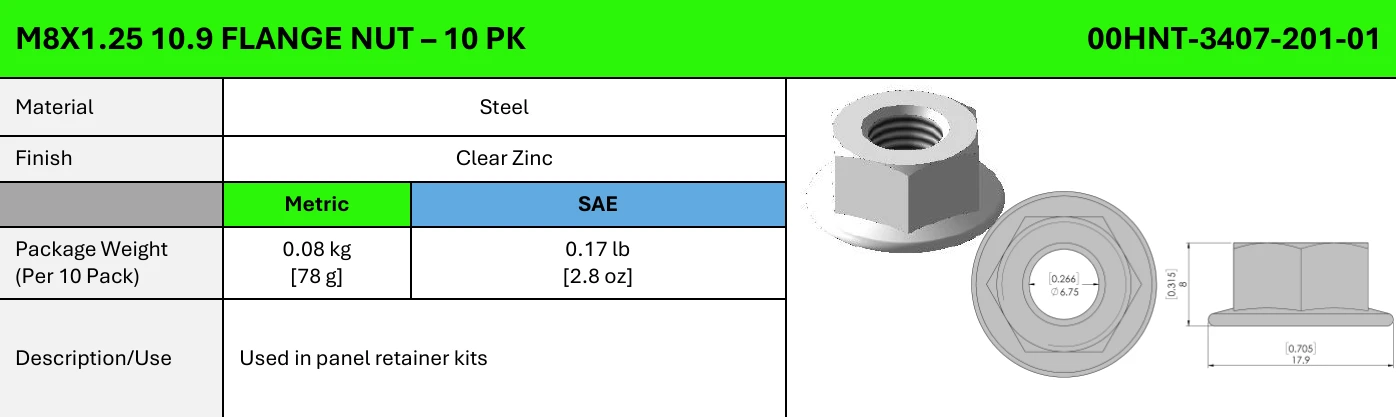

M8x1.25 10.9 Flange Nut specifications

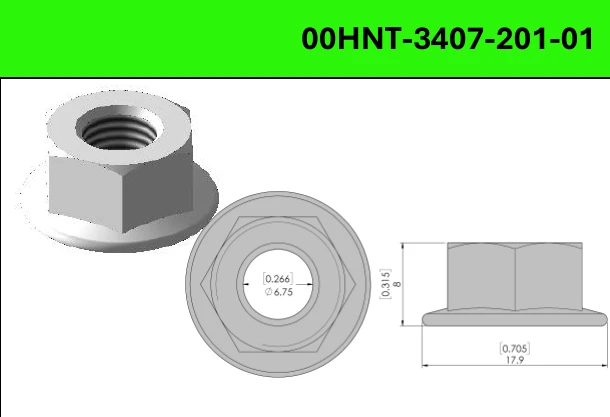

M8x1.25 10.9 Flange Nut dimensional drawing and assembled-in-use view

Hardware

M8x1.25 10.9 Flange Nut

Larger grade 10.9 flanged nut, M8x1.25.

Part number

00HNT-3407-201-01

Specifications

Request a QuoteCall (262) 421-8840

CAD Files

Download STEPDownload SolidWorks
