Products/Hardware/M6x1.0 79mm 2-Hole Angle Nut
M6x1.0 79mm 2-Hole Angle Nut

Catalog Spec Sheet

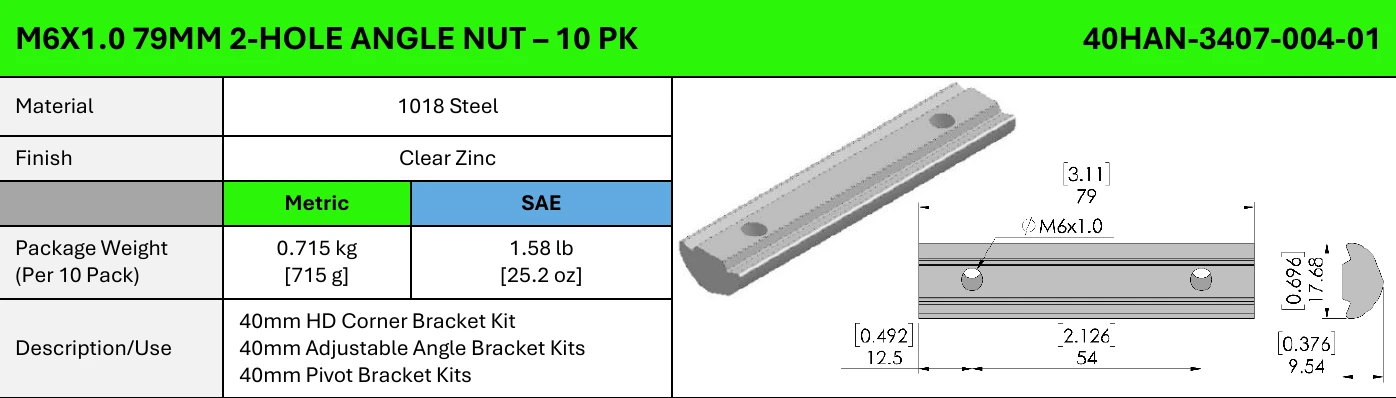

M6x1.0 79mm 2-Hole Angle Nut specifications

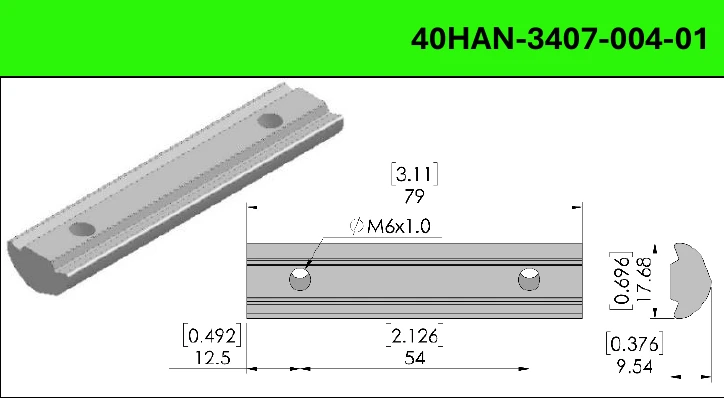

M6x1.0 79mm 2-Hole Angle Nut dimensional drawing and assembled-in-use view

Hardware

M6x1.0 79mm 2-Hole Angle Nut

Extended 2-hole angle nut variant, 79mm.

Part number

40HAN-3407-004-01

Specifications

Request a QuoteCall (262) 421-8840

CAD Files

Download STEPDownload SolidWorks
