M6x1.0 38mm 1-Hole Angle Nut

Catalog Spec Sheet

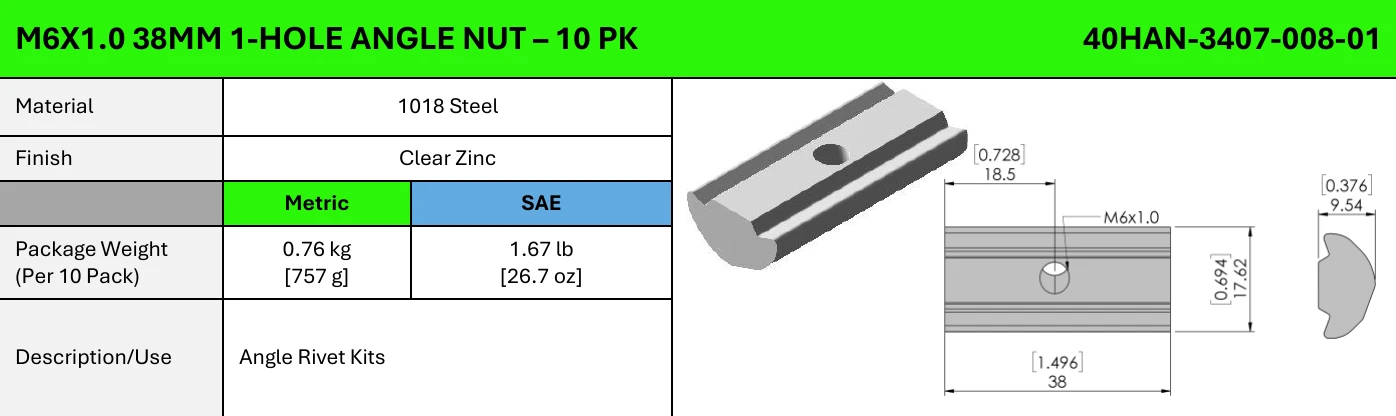

M6x1.0 38mm 1-Hole Angle Nut specifications

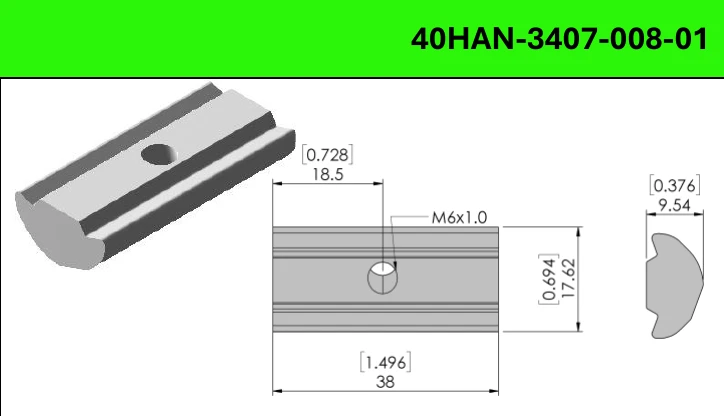

M6x1.0 38mm 1-Hole Angle Nut dimensional drawing and assembled-in-use view

Hardware

M6x1.0 38mm 1-Hole Angle Nut

Extended 1-hole angle nut, M6x1.0, 38mm.

Part number

40HAN-3407-008-01

Specifications

Request a QuoteCall (262) 421-8840

CAD Files

Download STEPDownload SolidWorks
