Products/Components/80mm SD Butt Joint Joining Plate
80mm SD Butt Joint Joining Plate

Catalog Spec Sheet

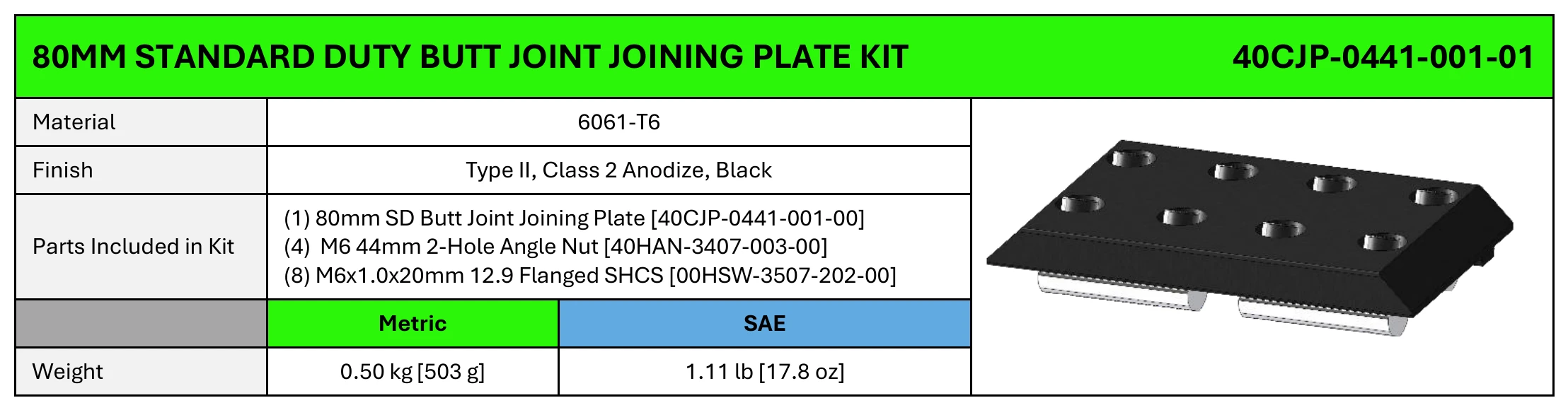

80mm SD Butt Joint Joining Plate specifications

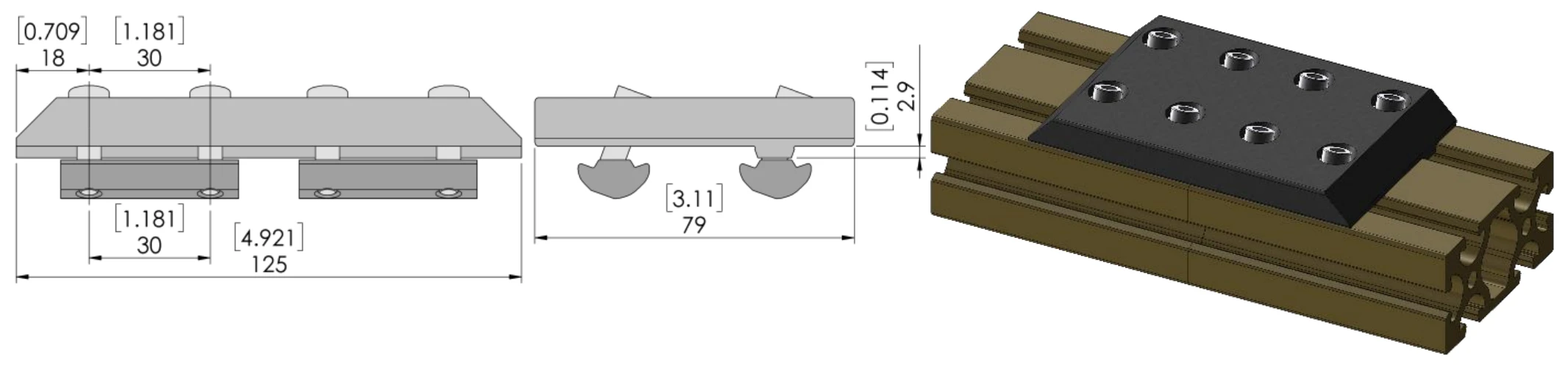

80mm SD Butt Joint Joining Plate dimensional drawing and assembled-in-use view

Components

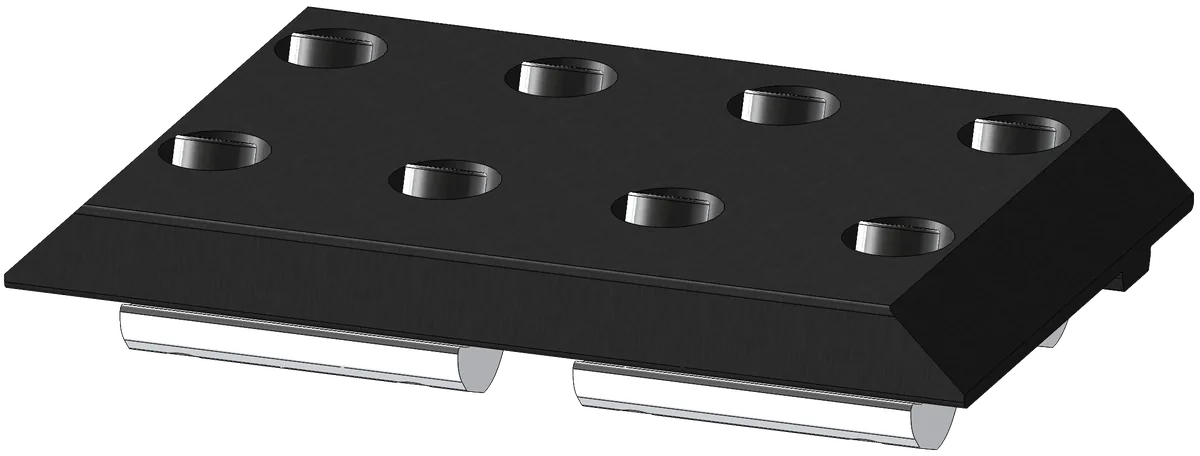

80mm SD Butt Joint Joining Plate

Standard-duty butt joint plate for 80mm profiles.

Part number

40CJP-0441-001-01

Specifications

Request a QuoteCall (262) 421-8840

CAD Files

Download SolidWorksDownload STEP
