80mm HD Butt Joint Joining Plate

Catalog Spec Sheet

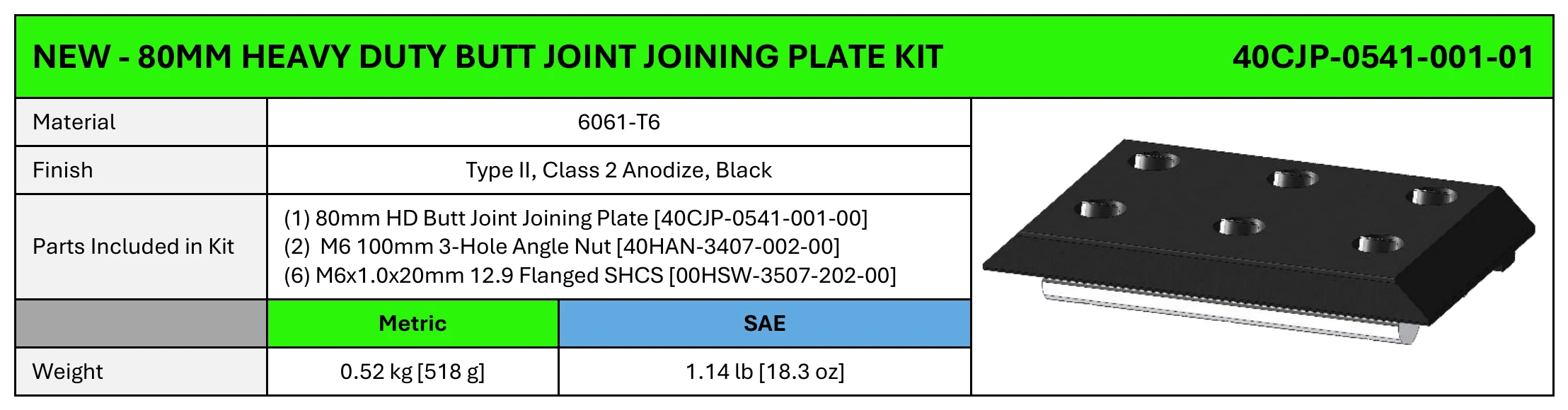

80mm HD Butt Joint Joining Plate specifications

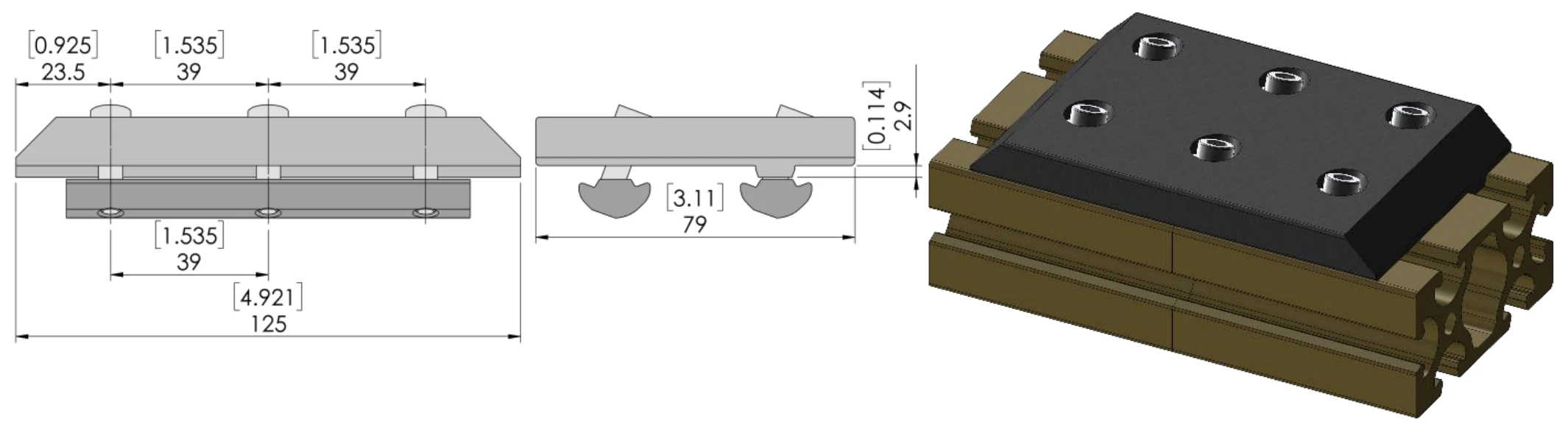

80mm HD Butt Joint Joining Plate dimensional drawing and assembled-in-use view

Components

80mm HD Butt Joint Joining Plate

Heavy-duty butt joint plate for 80mm profiles.

Part number

40CJP-0541-001-01

Specifications

Request a QuoteCall (262) 421-8840

CAD Files

Download SolidWorksDownload STEP
