40mm SD Butt Joint Joining Plate

Catalog Spec Sheet

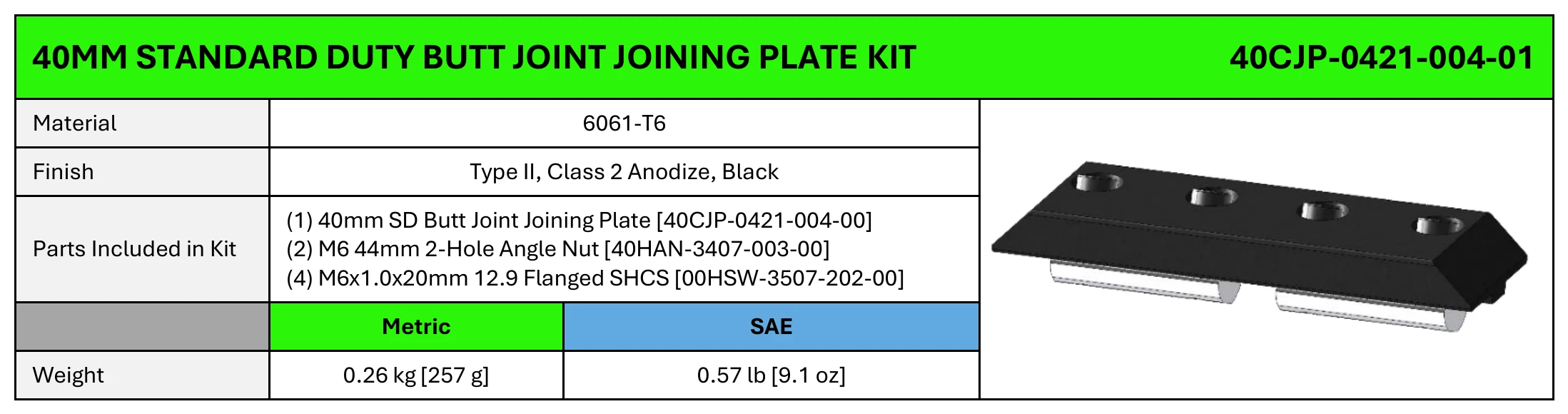

40mm SD Butt Joint Joining Plate specifications

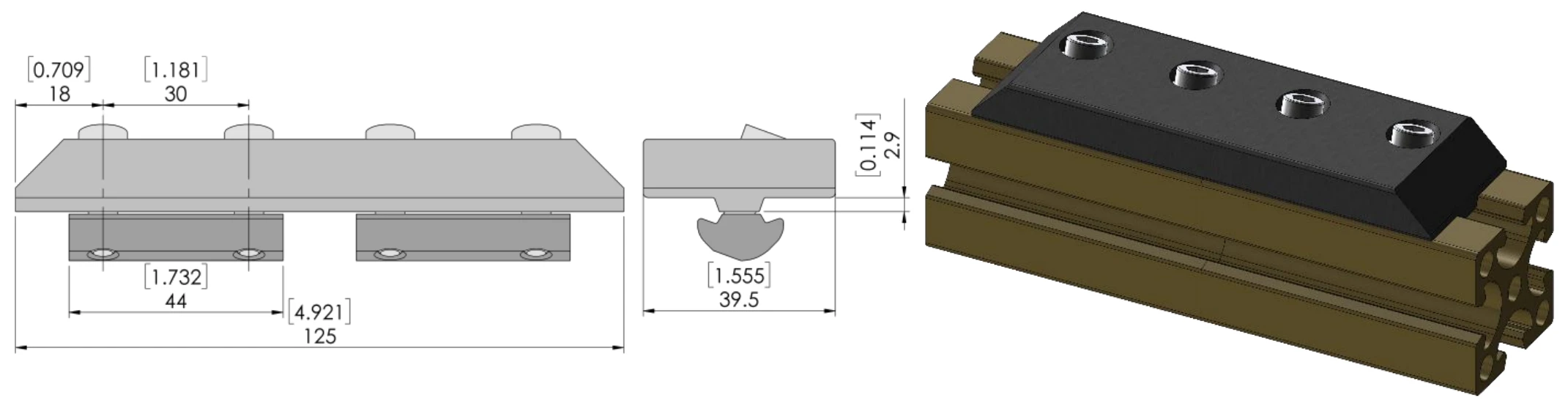

40mm SD Butt Joint Joining Plate dimensional drawing and assembled-in-use view

Components

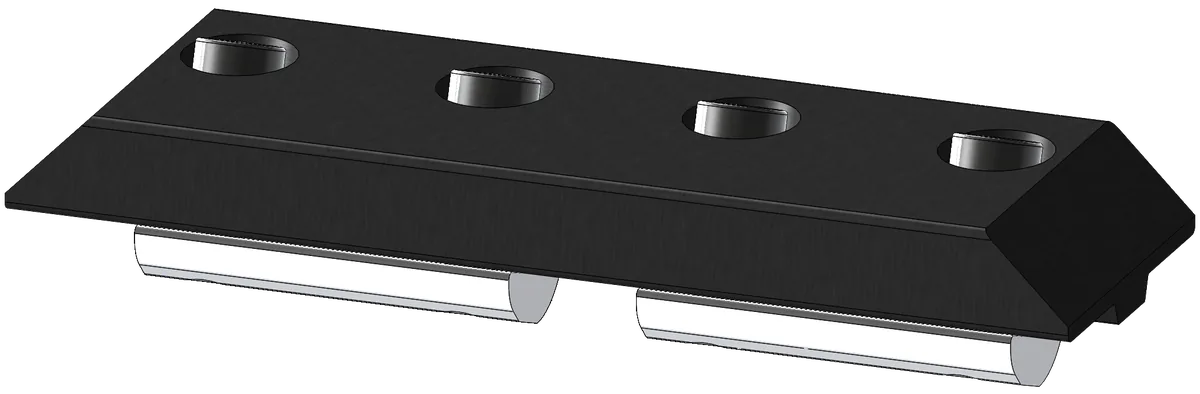

40mm SD Butt Joint Joining Plate

Standard-duty butt joint plate for 40mm profiles.

Part number

40CJP-0421-004-01

Specifications

Request a QuoteCall (262) 421-8840

CAD Files

Download SolidWorksDownload STEP
