40mm Adjustable Angle Bracket Offset Profile to End Mount Kit

Catalog Spec Sheet

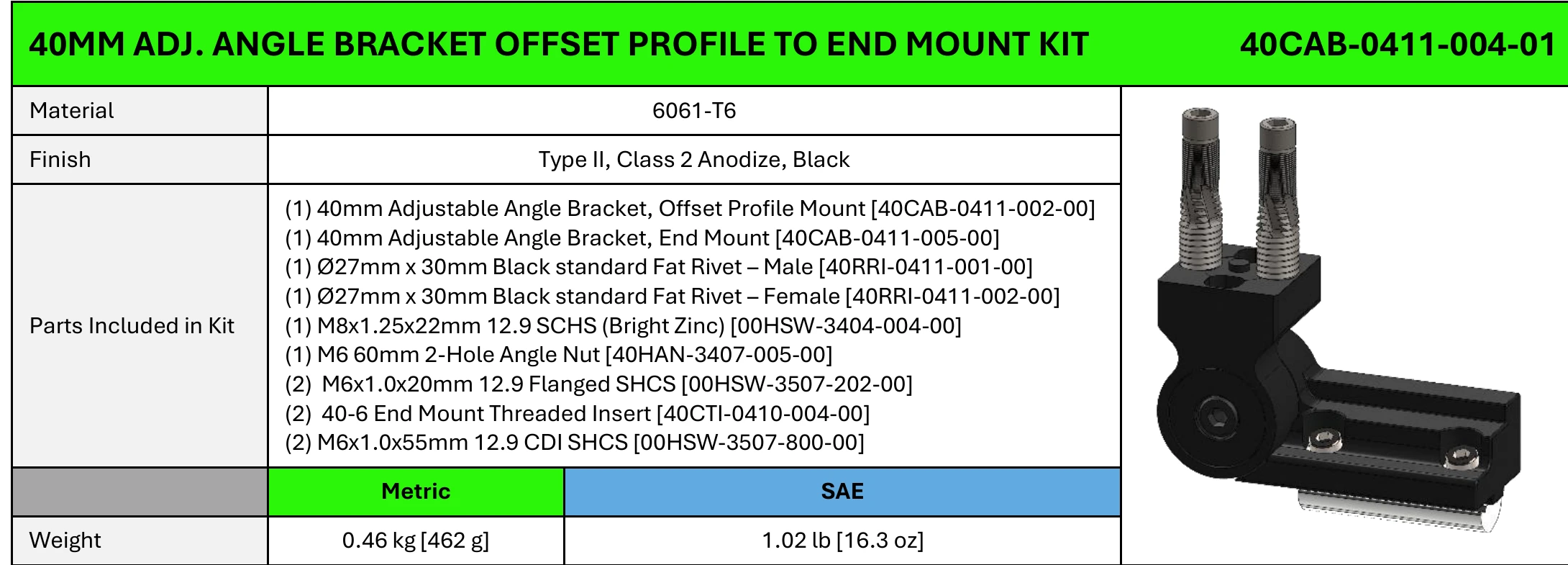

40mm Adjustable Angle Bracket Offset Profile to End Mount Kit specifications

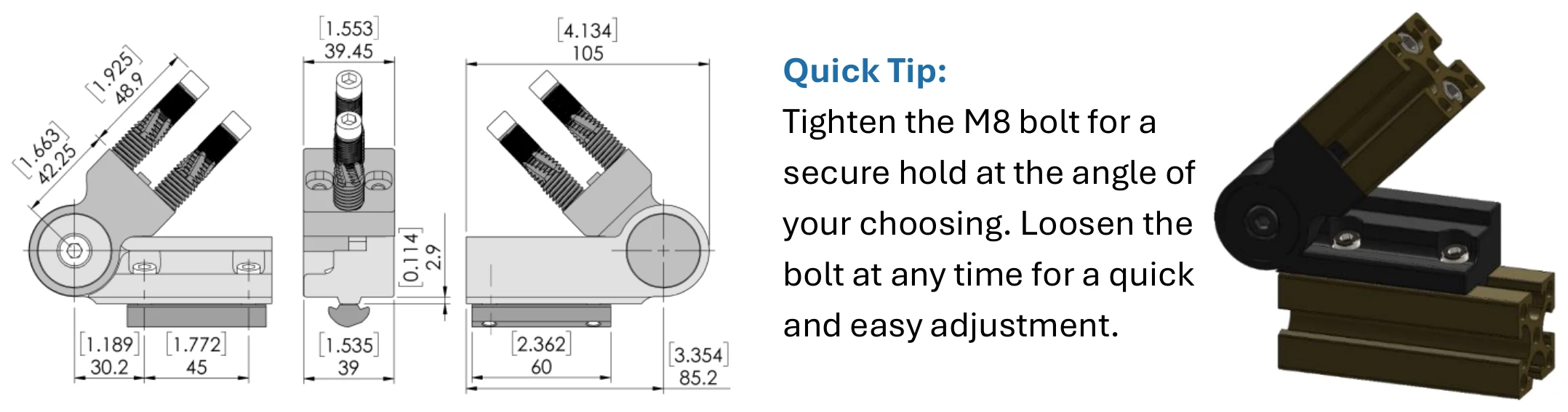

40mm Adjustable Angle Bracket Offset Profile to End Mount Kit dimensional drawing and assembled-in-use view

Components

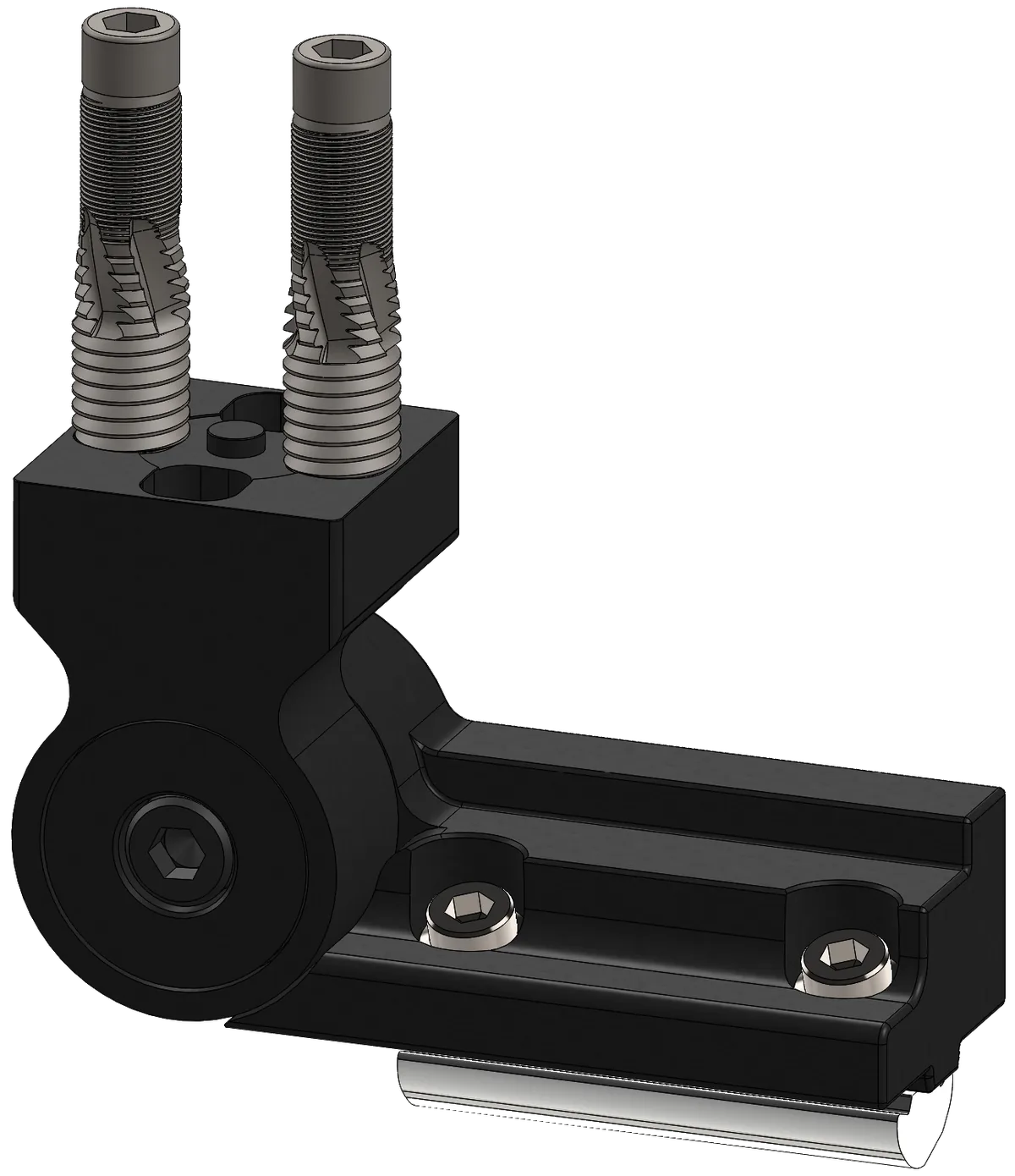

40mm Adjustable Angle Bracket Offset Profile to End Mount Kit

Angle bracket connecting offset profile to end mount.

Part number

40CAB-0411-004-01

Specifications

Request a QuoteCall (262) 421-8840

CAD Files

Download STEP
