Products/Components/300mm 2-Hole Rivet Plate
300mm 2-Hole Rivet Plate

Catalog Spec Sheet

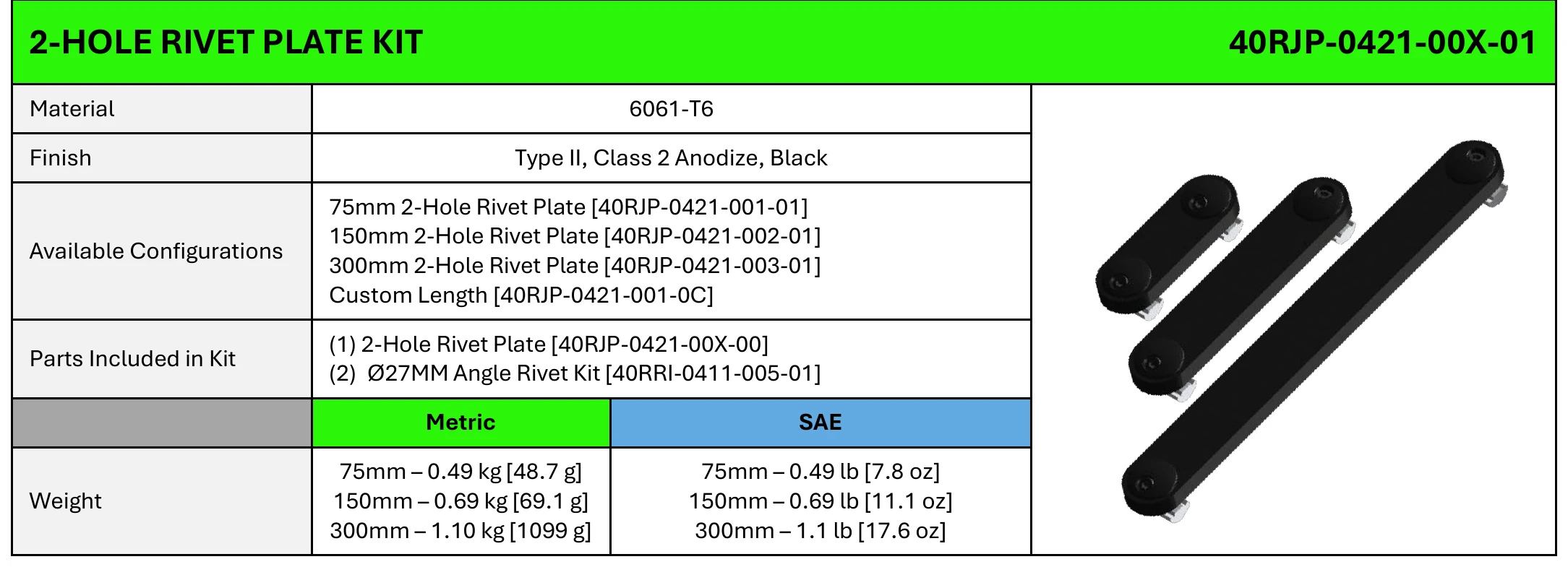

300mm 2-Hole Rivet Plate specifications

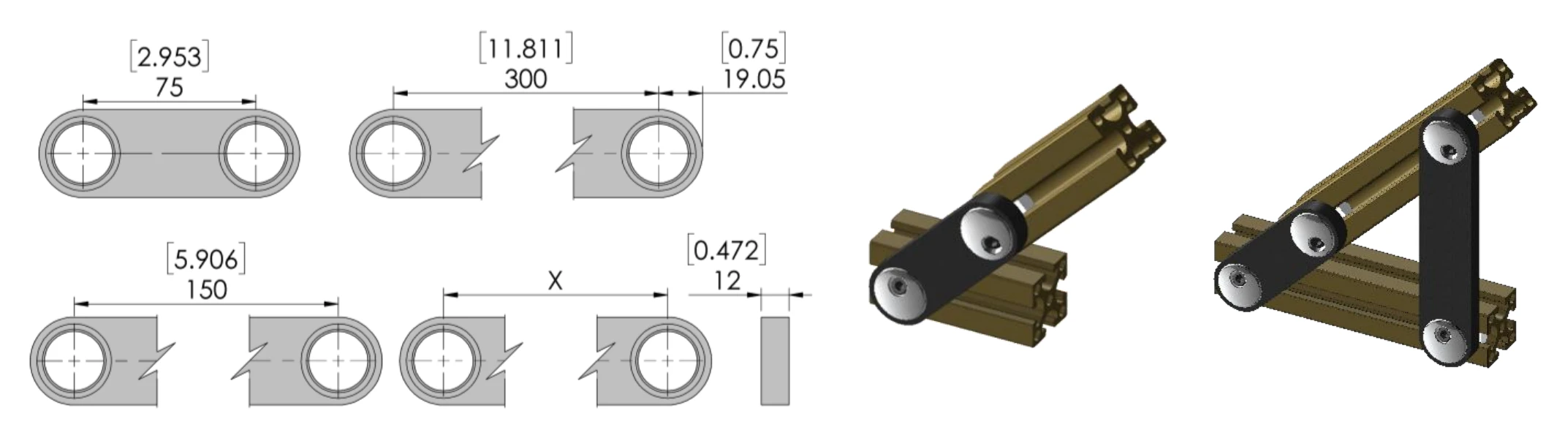

300mm 2-Hole Rivet Plate dimensional drawing and assembled-in-use view

Components

300mm 2-Hole Rivet Plate

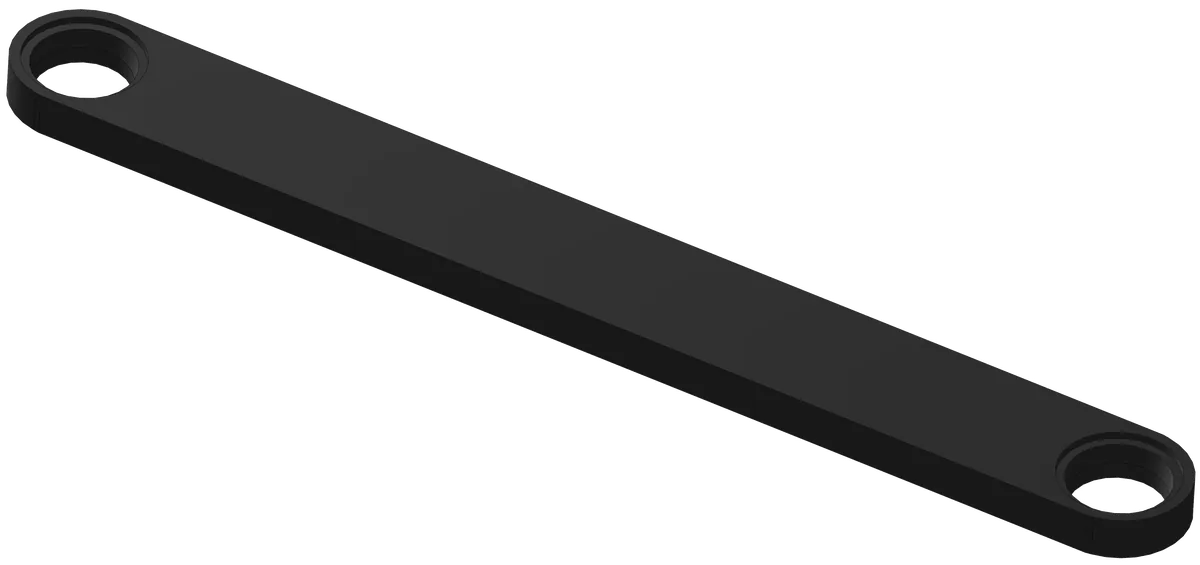

300mm two-hole rivet plate for extended structural connections.

Part number

40RJP-0421-003-01

Specifications

Request a QuoteCall (262) 421-8840

CAD Files

Download STEPDownload SolidWorks
