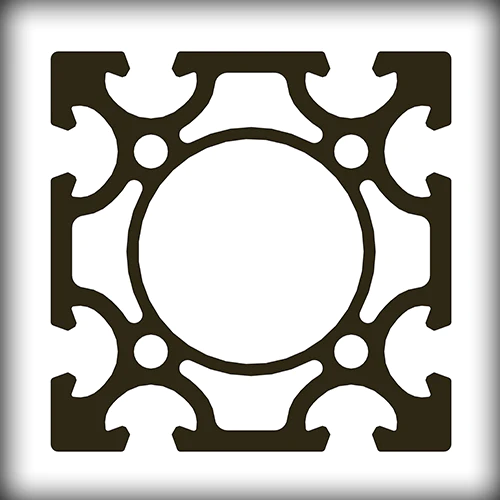

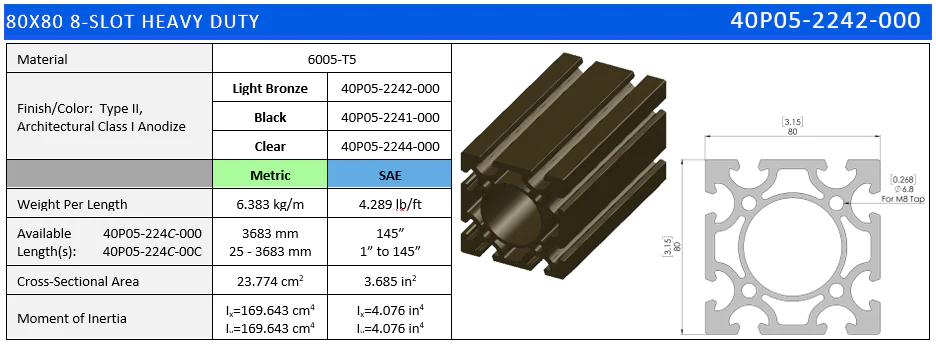

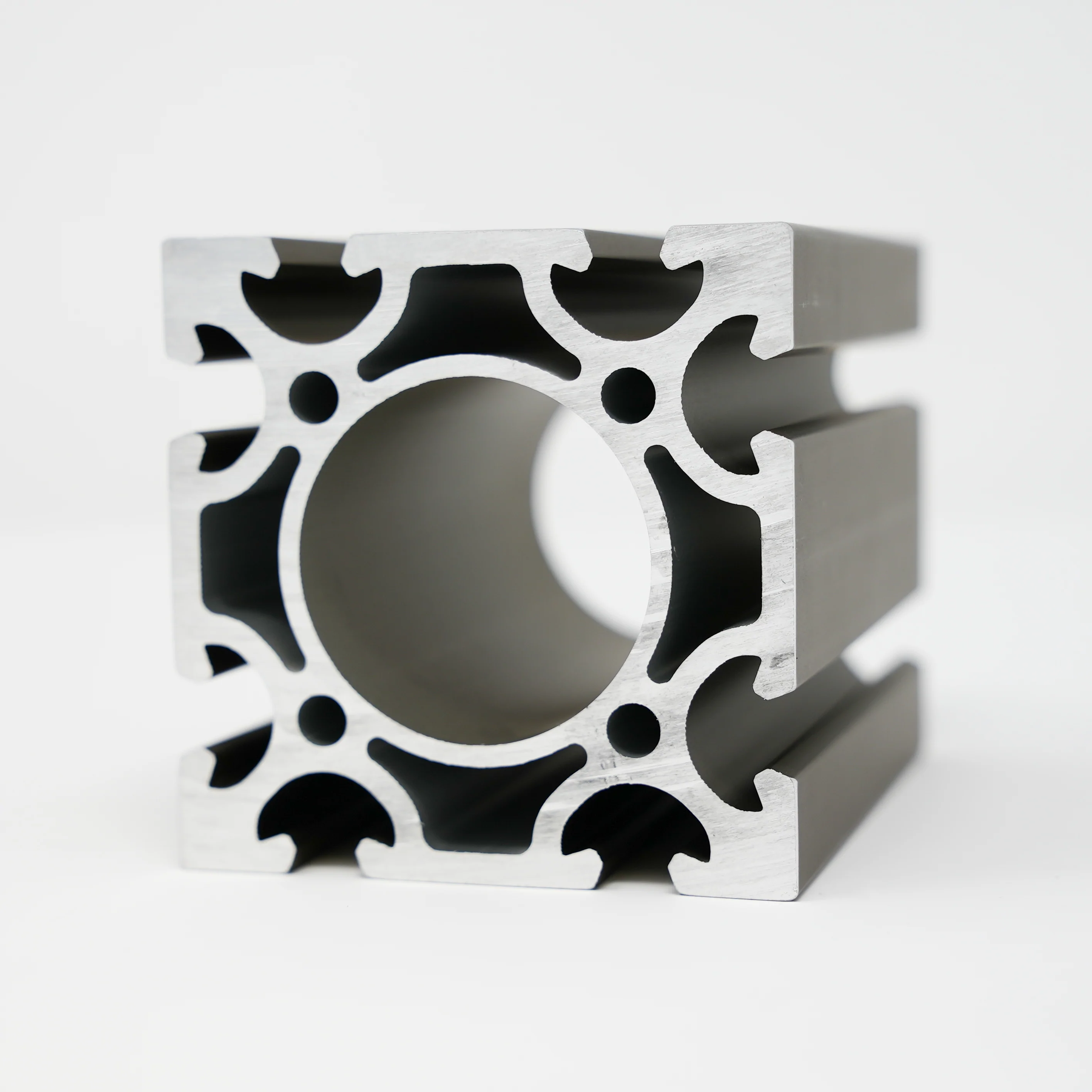

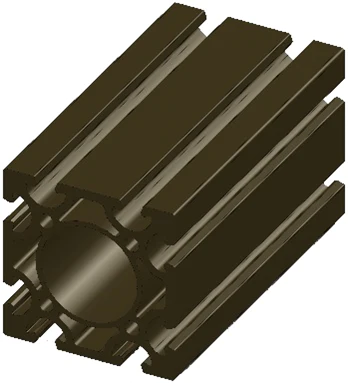

80x80 8-Slot HD
Download
Description:
40P05-2242-000
Load Ratings:
Translational Load |
|
|---|---|
| Tensile Load - Working Load (N) | 344,229 |
| Tensile Load - Working Load (lbf) | 77,451 |
| Shear X - Working Load (N) | 80,874 |
| Shear X - Working Load (lbf) | 18,197 |
| Shear Y - Working Load (N) | 80,874 |
| Shear Y - Working Load (lbf) | 18,197 |
Torsion |
|
|---|---|
| Torque - Working Load (N*m) | 3,088 |
| Torque - Working Load (in*lb) | 27,329 |
Bending Moment |
|
|---|---|
| Bending X - Working Moment (N*m) | 8,188 |
| Bending X - Working Moment (in*lb) | 72,461 |
| Bending Y - Working Moment (N*m) | 8,188 |
| Bending Y - Working Moment (in*lb) | 72,461 |
