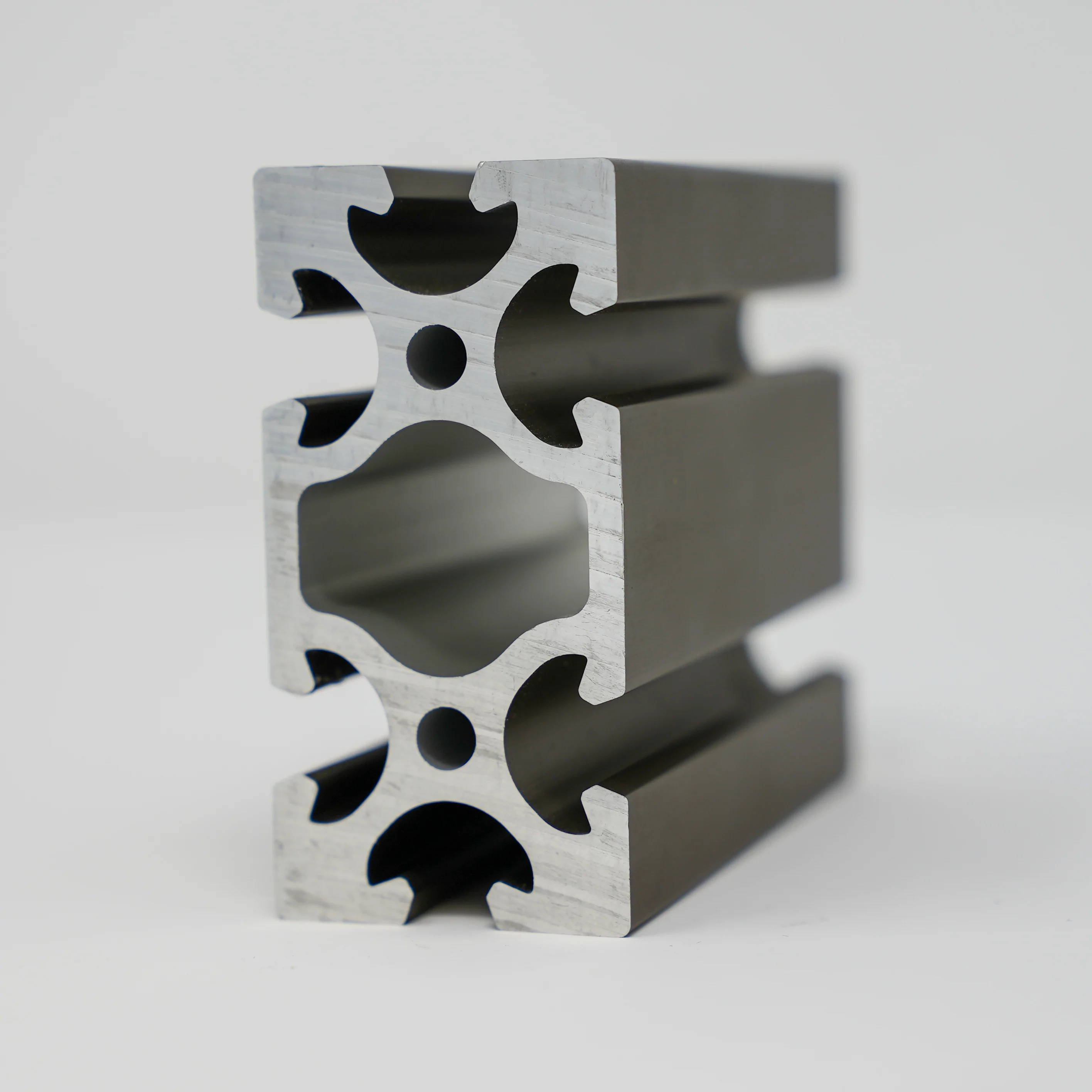

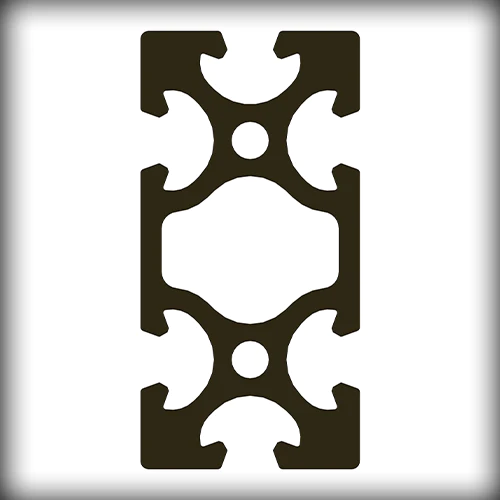

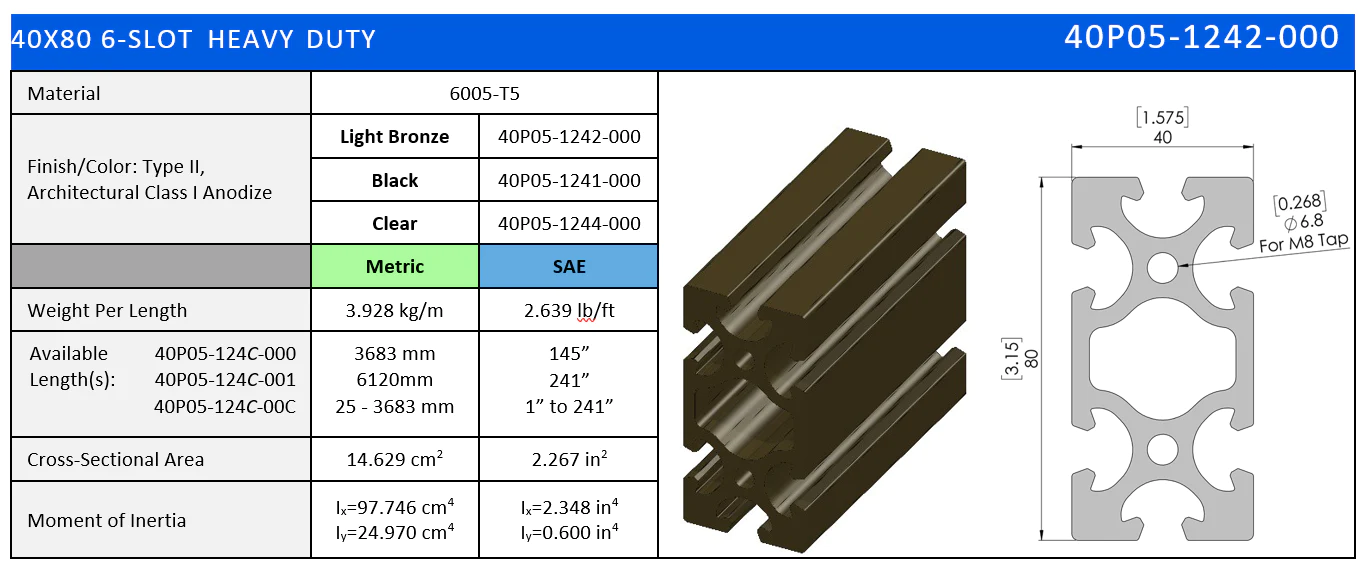

40x80 6-Slot HD
Download
Description:
40P05-1242-000
Load Ratings:
Translational Load |
|
|---|---|
| Tensile Load - Working Load (N) | 211,816 |
| Tensile Load - Working Load (lbf) | 47,659 |
| Shear X - Working Load (N) | 45,882 |
| Shear X - Working Load (lbf) | 10,323 |
| Shear Y - Working Load (N) | 38,402 |
| Shear Y - Working Load (lbf) | 8,640 |
Torsion |
|
|---|---|
| Torque - Working Load (N*m) | 1,088 |
| Torque - Working Load (in*lb) | 9,629 |
Bending Moment |
|
|---|---|
| Bending X - Working Moment (N*m) | 4,718 |
| Bending X - Working Moment (in*lb) | 41,751 |
| Bending Y - Working Moment (N*m) | 2,410 |
| Bending Y - Working Moment (in*lb) | 21,331 |
