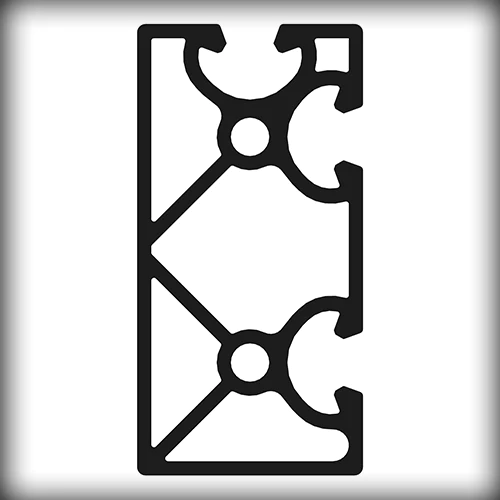

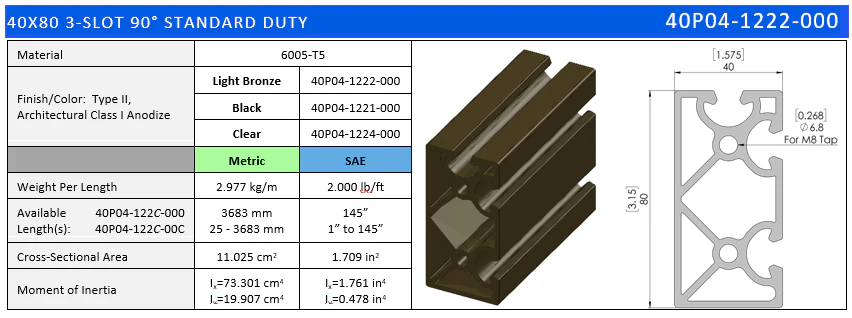

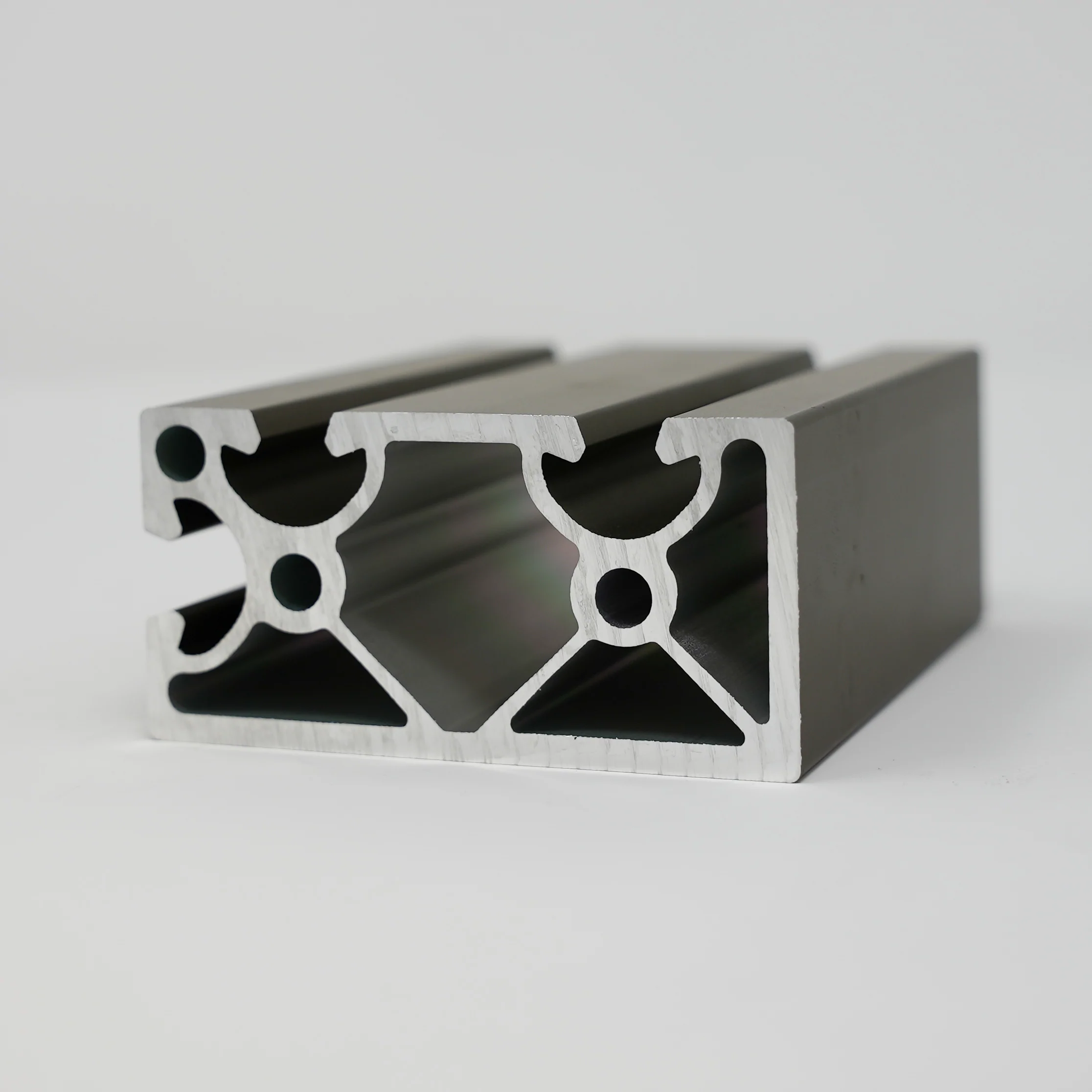

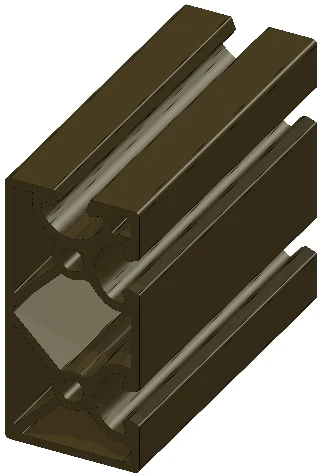

40x80 3-Slot 90° SD
Download
Description:
40P04-1222-000
Load Ratings:
Translational Load |
|
|---|---|
| Tensile Load - Working Load (N) | 159,633 |
| Tensile Load - Working Load (lbf) | 35,917 |
| Shear X - Working Load (N) | 29,998 |
| Shear X - Working Load (lbf) | 6,750 |
| Shear Y - Working Load (N) | 33,335 |
| Shear Y - Working Load (lbf) | 7,500 |
Torsion |
|
|---|---|
| Torque - Working Load (N*m) | 1,160 |
| Torque - Working Load (in*lb) | 10,266 |
Bending Moment |
|
|---|---|
| Bending X - Working Moment (N*m) | 3,131 |
| Bending X - Working Moment (in*lb) | 27,708 |
| Bending Y - Working Moment (N*m) | 1,919 |
| Bending Y - Working Moment (in*lb) | 16,981 |
