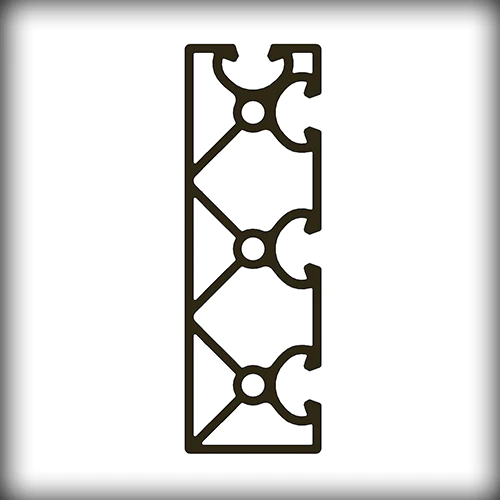

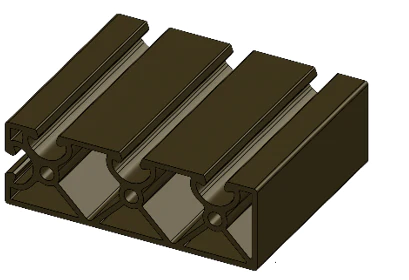

40x120 4-Slot 90° SD
Click here to request a 3D model or files
Description:

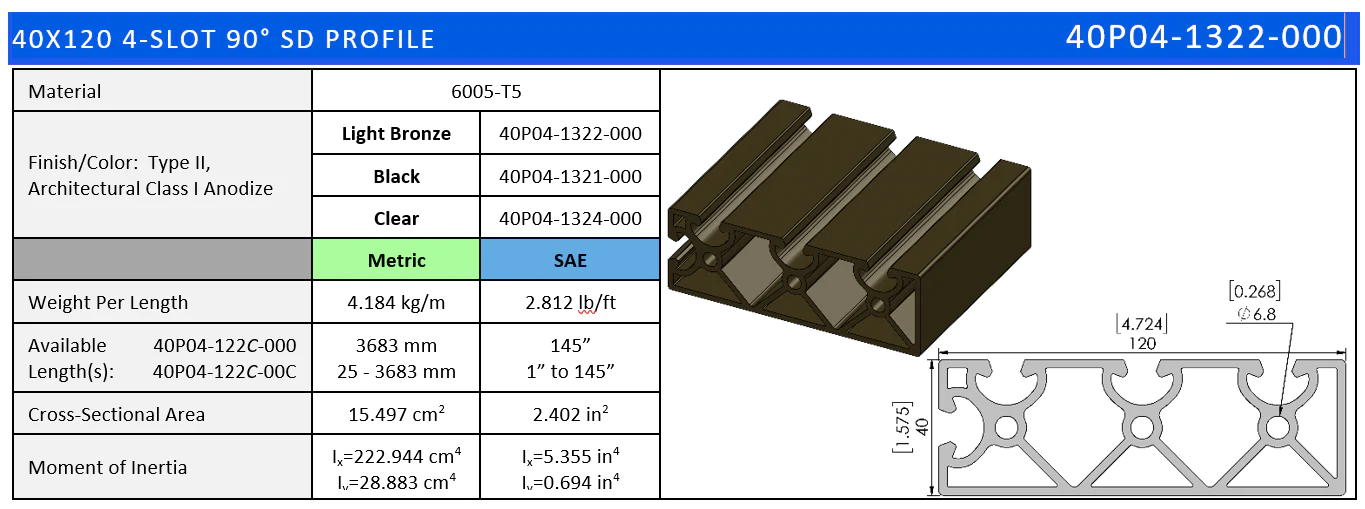

40P04-1322-000
Load Ratings:
Translational Load |
|
|---|---|
| Tensile Load - Working Load (N) | 224,384 |
| Tensile Load - Working Load (lbf) | 50,486 |
| Shear X - Working Load (N) | 75,679 |
| Shear X - Working Load (lbf) | 17,028 |
| Shear Y - Working Load (N) | 57,906 |
| Shear Y - Working Load (lbf) | 13,029 |
Torsion |
|
|---|---|
| Torque - Working Load (N*m) | 1,802 |
| Torque - Working Load (in*lb) | 15,946 |
Bending Moment |
|
|---|---|
| Bending X - Working Moment (N*m) | 6,274 |
| Bending X - Working Moment (in*lb) | 55,526 |
| Bending Y - Working Moment (N*m) | 2,512 |
| Bending Y - Working Moment (in*lb) | 22,229 |
