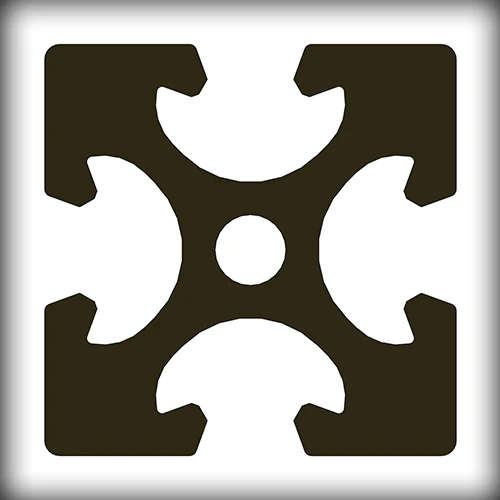

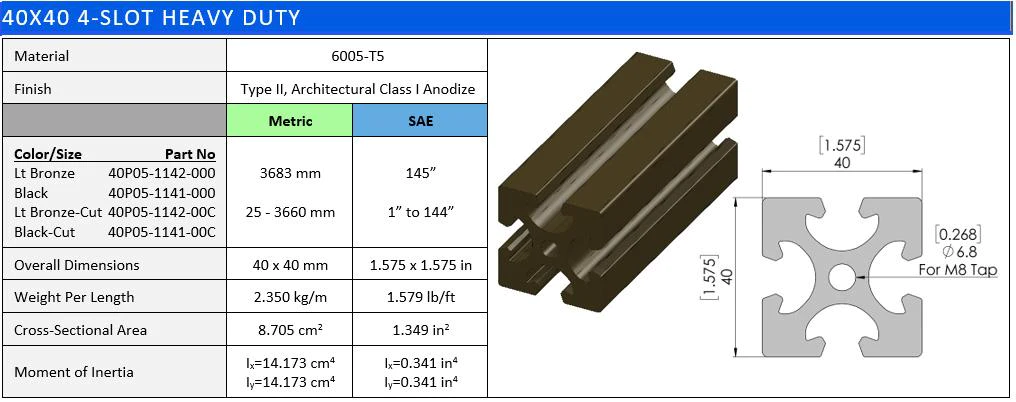

40x40 4-Slot HD
Download
Description:
40P05-1141-000
Load Ratings:
Translational Load |
|
|---|---|
| Tensile Load - Working Load (N) | 126,041 |
| Tensile Load - Working Load (lbf) | 28,359 |
| Shear X - Working Load (N) | 18,130 |
| Shear X - Working Load (lbf) | 4,079 |
| Shear Y - Working Load (N) | 18,130 |
| Shear Y - Working Load (lbf) | 4,079 |
Torsion |
|
|---|---|
| Torque - Working Load (N*m) | 268 |
| Torque - Working Load (in*lb) | 2,372 |
Bending Moment |
|
|---|---|
| Bending X - Working Moment (N*m) | 1,368 |
| Bending X - Working Moment (in*lb) | 12,108 |
| Bending Y - Working Moment (N*m) | 1,368 |
| Bending Y - Working Moment (in*lb) | 12,108 |
