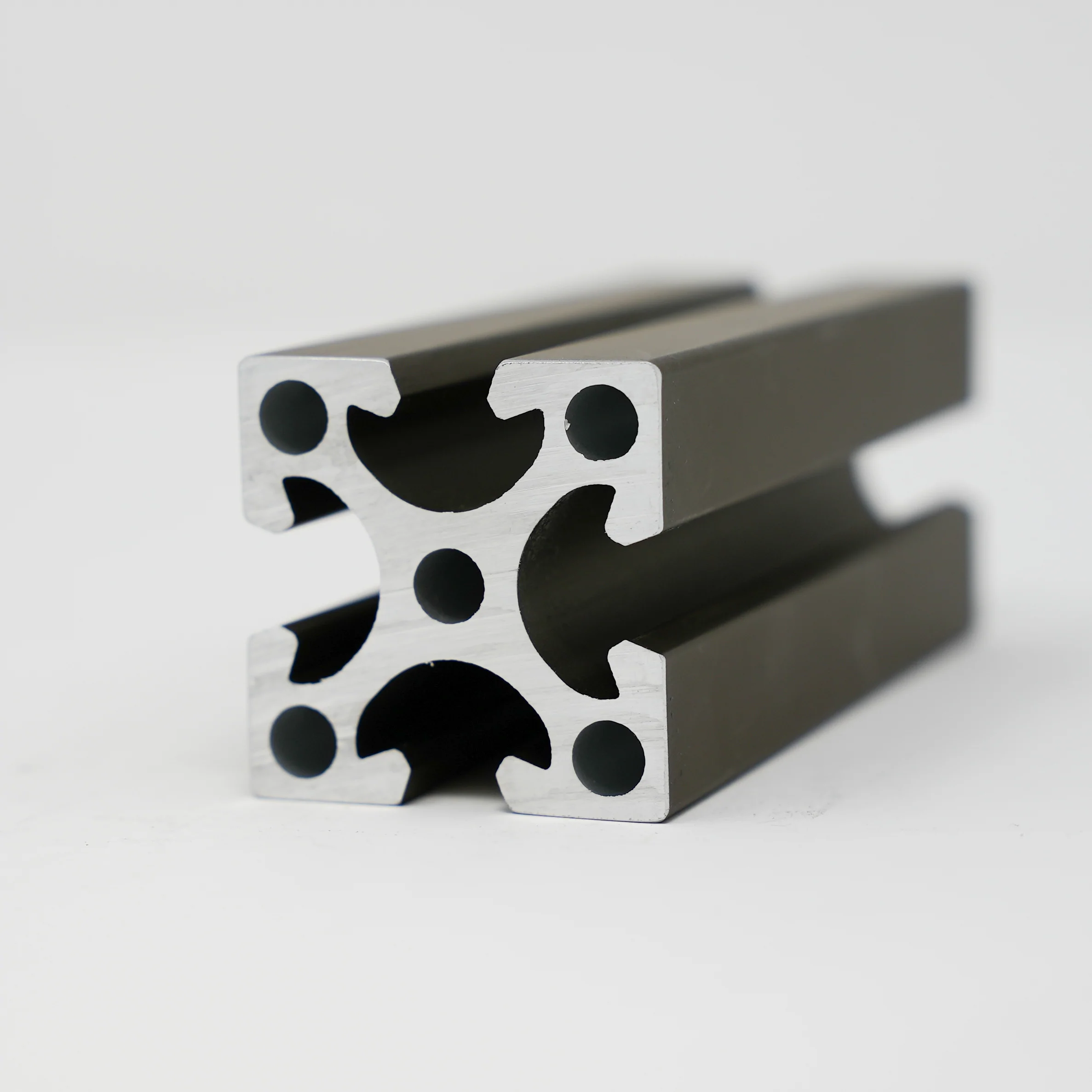

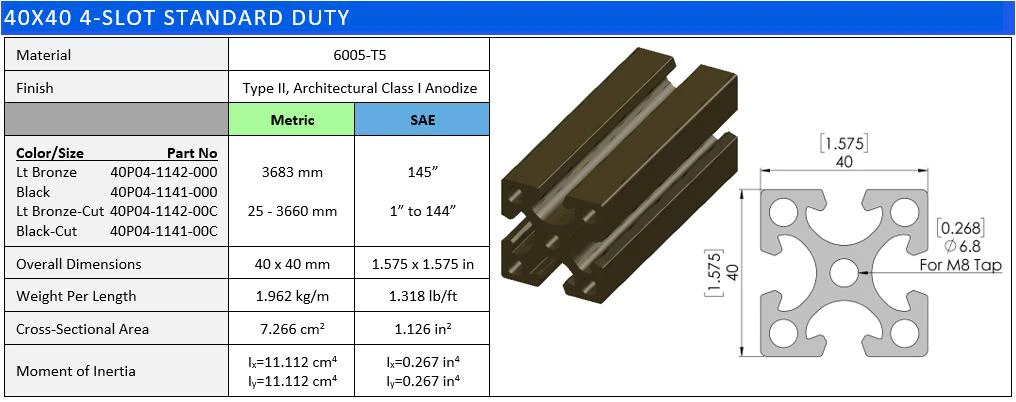

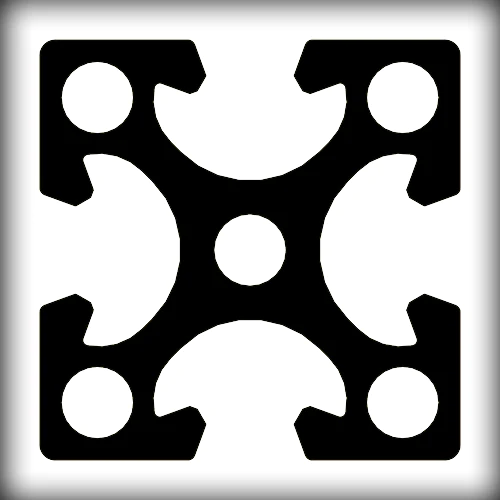

40x40 4-Slot SD
Download
Description:
40P04-1141-000
Load Ratings:
Translational Load |
|
|---|---|
| Tensile Load - Working Load (N) | 105,206 |
| Tensile Load - Working Load (lbf) | 23,671 |
| Shear X - Working Load (N) | 17,777 |
| Shear X - Working Load (lbf) | 4,000 |
| Shear Y - Working Load (N) | 17,777 |
| Shear Y - Working Load (lbf) | 4,000 |
Torsion |
|
|---|---|
| Torque - Working Load (N*m) | 216 |
| Torque - Working Load (in*lb) | 1,912 |
Bending Moment |
|
|---|---|
| Bending X - Working Moment (N*m) | 1,073 |
| Bending X - Working Moment (in*lb) | 9,493 |
| Bending Y - Working Moment (N*m) | 1,073 |
| Bending Y - Working Moment (in*lb) | 9,493 |
