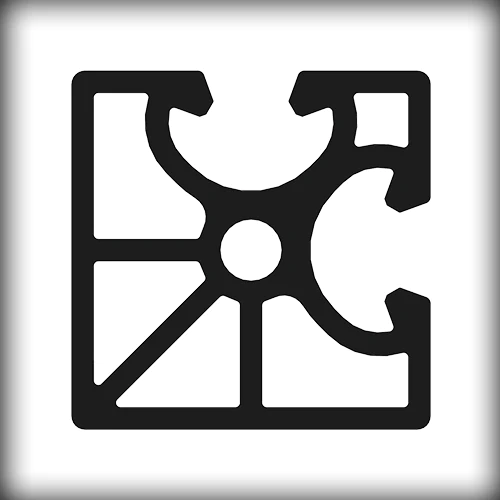

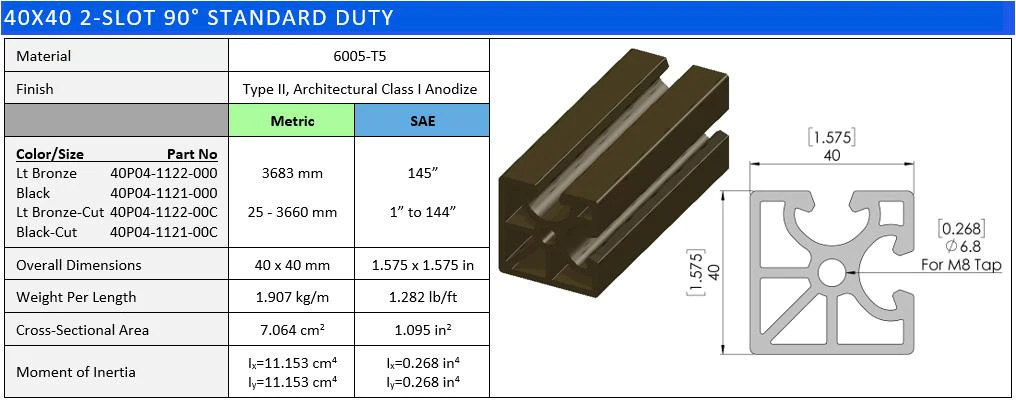

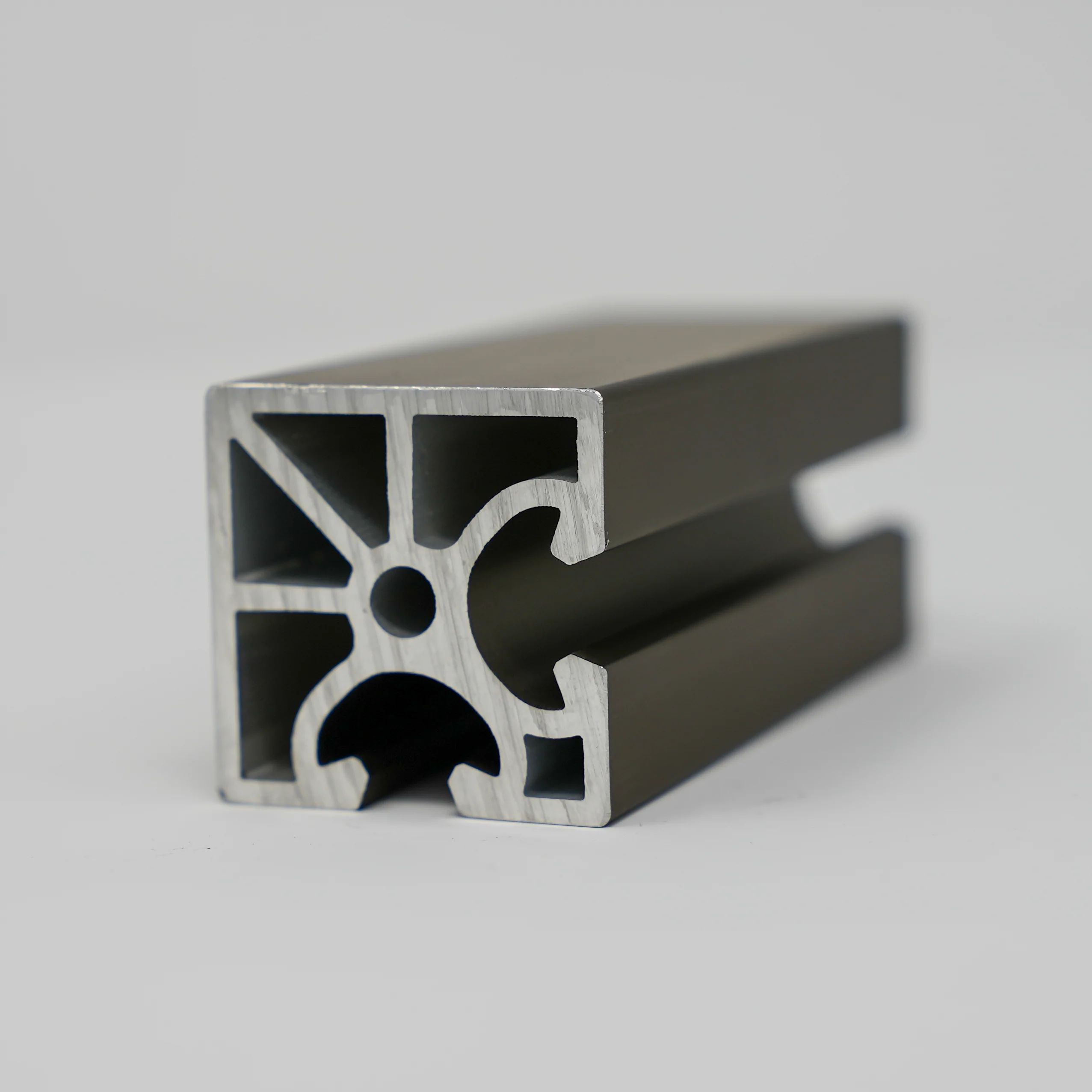

40x40 2-Slot90°
Download
Description:
40P04-1121-000
Load Ratings:
Translational Load |
|
|---|---|
| Tensile Load - Working Load (N) | 102,281 |
| Tensile Load - Working Load (lbf) | 23,013 |
| Shear X - Working Load (N) | 59,297 |
| Shear X - Working Load (lbf) | 13,342 |
| Shear Y - Working Load (N) | 59,282 |
| Shear Y - Working Load (lbf) | 13,338 |
Torsion |
|
|---|---|
| Torque - Working Load (N*m) | 456 |
| Torque - Working Load (in*lb) | 4,036 |
Bending Moment |
|
|---|---|
| Bending X - Working Moment (N*m) | 979 |
| Bending X - Working Moment (in*lb) | 8,662 |
| Bending Y - Working Moment (N*m) | 979 |
| Bending Y - Working Moment (in*lb) | 8,662 |
